Product feature

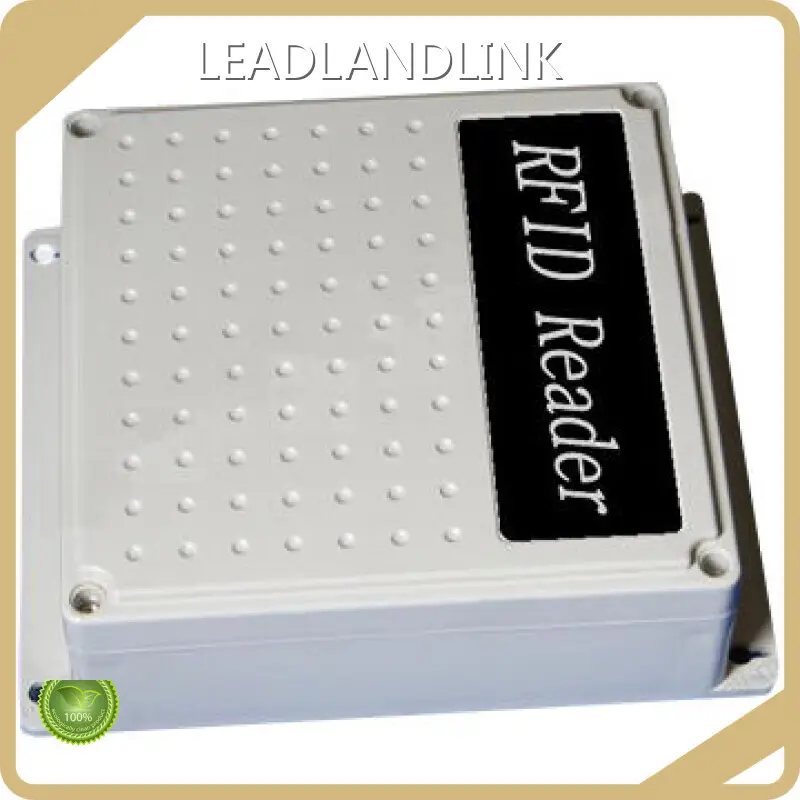

The table tray RFID reader integrates antenna inside. Polarization is vertical or horizontal or circular while frequency is US standard 902 to 928MHz, EU band 865 to 868MHz, fixed frequency or FHSS. The unit supports RS-232, RS485 and Wiegand26/34/42/GPIO/LAN communication. RF output is less than 30dBm and is software programmable. Available software are API and demo sample (VC and VB). A flexible and easy-to-operate SDK file is provided.
The 305x305x20mm RFID reader runs on 5VDC and 1A. It weighs 2kg. The product is a low-cost solution that is widely used for library, supermarket,shop, Pearls and jewels shop, and other intelligent identification systems.
UHF RFID product supplier-Leadlandlink has a showroom in Shenzhen and one factory in Dongguan.
Warm reminder
● Note: All price quotes in this report are in US dollars unless otherwise specified. FOB prices were provided by the companies interviewed only as reference prices at the time of interview and may have changed.
● Disclaimer: All product images are provided by the companies interviewed and are for reference purposes only. Those product images featuring products with trademarks, brand names or logos are not intended for sale. We, our affiliates, and our affiliates' respective directors, officers, employees, representatives, agents or contractors, do not accept and will not have any responsibility or liability for product images (or any part thereof) which infringe on any intellectual property or other rights of a third party.
Product parameter
Item |
Parameters & Performance |
Item |
Parameters & Performance |
Reader-Tag Protocol |
ISO18000-6B, EPC Class1 Gen2 |
Weight |
2.0Kg |
Antenna Port |
Integrated antenna, Horizontal Polarization or circular |
Storage Temp |
-30 ~ +85 degree celsius |
Frequency Band |
US(902-928MHz), EU(865-868MHz), CN(920-925MHz), other frequency band. |
Operation Temp |
-20 ~ +80 degree celsius |
Frequency Mode |
Fixed frequency mode / FHSS frequency mode |
Anti-thunder Protection |
Shell direct to the ground, communication 1.5KV surge endurance |
Communication |
RS232/USB/LAN, RS485/Wiegand/GPIO |
Work Performance |
High speed micro-processor controlled, running steadily |
Detecting Range |
Up to 50cm, depend on environment and tag |
Work Mode |
Support Master-Slave mode, Trigger/Automatic mode |
RF Output |
Less than 32dBm, Software Programmable |
Fast Identify |
Tags with more than 160Km/h speed can be identified |
Software Support |
Provide Communication Protocol, Windows API & Demo, VC/VB/C# source/sample code |
Upgrade |
Firmware can be upgraded easily by RS232/USB/LAN |
Power Supply |
DC 5V supply, less than 2A |
Weight |
2.0Kg |
Dimension |
305x305x20 mm (not including fitting) |
Storage Temp |
-30 ~ +85 degree celsius |
Applications
Application 1: Checking out in supermarket
Application 2: In Library
Application 3: Anti fake management for jewelry shop
Company Advantages
· LEADLANDLINK uhf rfid tag reader is developed as per the specifications laid by customers.
· The product is guaranteed by our professional and responsible QC team to meet the industry standards.
· The customer satisfaction puts LEADLANDLINK in a strong position.
Company Features
· LEADLANDLINK brand is famous in the field of uhf rfid tag reader.
· SHENZHEN LEADLANDLINK RFID TECHNOLOGY CO., LTD. has a mature product research and development team for uhf rfid tag reader.
· Take every chance to achieve the value is the dream of every staff in LEADLANDLINK. Check it!
Application of the Product
uhf rfid tag reader of LEADLANDLINK has very extensive application in different scenarios.
With a focus on customers' potential needs, LEADLANDLINK has the ability to provide one-stop solutions.
