Specialized in UHF RFID Readers and Tags and Solution since 2008

Uhf Rfid Reader Arduino Quality Assurance for ApartmentL6023 1
Uhf Rfid Reader Arduino Quality Assurance for ApartmentL6023 2
Uhf Rfid Reader Arduino Quality Assurance for ApartmentL6023 1
Uhf Rfid Reader Arduino Quality Assurance for ApartmentL6023 2

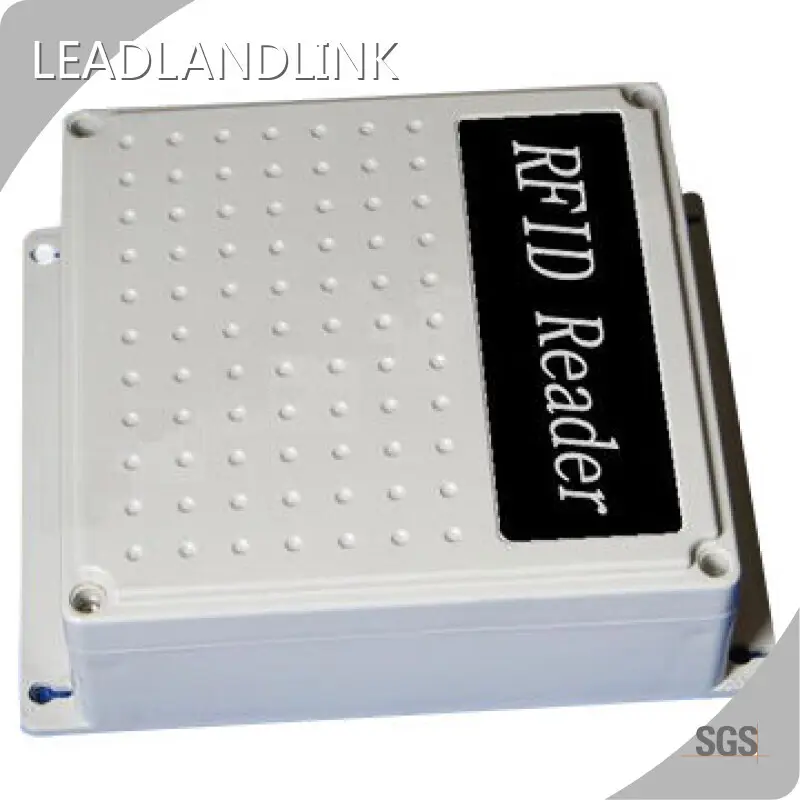

Uhf Rfid Reader Arduino Quality Assurance for ApartmentL6023

Model:
L6023
Certification:
FCC
FOB price:
Negotiable
Inquiry

Product details of the uhf rfid reader arduino


Quick Overview

It is of great importance for LEADLANDLINK to pay attention to the design of the uhf rfid reader arduino. The product we offered has reliable performance and durability. Samples of uhf rfid reader arduino can be provided for our customers' checking and confirmation before mass production.


Product Introduction

LEADLANDLINK's uhf rfid reader arduino has more advantages over similar products in terms of technology and quality.

Product feature

The table tray RFID reader integrates antenna inside. Polarization is vertical or horizontal or circular while frequency is US standard 902 to 928MHz, EU band 865 to 868MHz, fixed frequency or FHSS. The unit supports RS-232, RS485 and Wiegand26/34/42/GPIO/LAN communication. RF output is less than 30dBm and is software programmable. Available software are API and demo sample (VC and VB). A flexible and easy-to-operate SDK file is provided.

The 305x305x20mm RFID reader runs on 5VDC and 1A. It weighs 2kg. The product is a low-cost solution that is widely used for library, supermarket,shop, Pearls and jewels shop, and other intelligent identification systems.

UHF RFID product supplier-Leadlandlink has a showroom in Shenzhen and one factory in Dongguan.

Table tray UHF RFID Reader L6023
Table tray rfid reader L6023 (2)

Warm reminder

● Note: All price quotes in this report are in US dollars unless otherwise specified. FOB prices were provided by the companies interviewed only as reference prices at the time of interview and may have changed.

Disclaimer: All product images are provided by the companies interviewed and are for reference purposes only. Those product images featuring products with trademarks, brand names or logos are not intended for sale. We, our affiliates, and our affiliates' respective directors, officers, employees, representatives, agents or contractors, do not accept and will not have any responsibility or liability for product images (or any part thereof) which infringe on any intellectual property or other rights of a third party.

Product display

L6020 Desktop RFID Reader&writer -8 (2)
L6020 Desktop RFID Reader&writer -8 (2)
L6020 Desktop RFID Reader&writer -7
L6020 Desktop RFID Reader&writer -7
L6020 Desktop RFID Reader&writer -6
L6020 Desktop RFID Reader&writer -6
L6020 Desktop RFID Reader&writer -5
L6020 Desktop RFID Reader&writer -5
L6020 Desktop RFID Reader&writer -2
L6020 Desktop RFID Reader&writer -2

Product parameter

Item

Parameters & Performance

Item

Parameters & Performance

Reader-Tag Protocol

ISO18000-6B, EPC Class1 Gen2

Weight

2.0Kg

Antenna Port

Integrated antenna, Horizontal Polarization or circular

Storage Temp

-30 ~ +85 degree celsius

Frequency Band

US(902-928MHz), EU(865-868MHz), CN(920-925MHz), other frequency band.

Operation Temp

-20 ~ +80 degree celsius

Frequency Mode

Fixed frequency mode / FHSS frequency mode

Anti-thunder Protection

Shell direct to the ground, communication 1.5KV surge endurance

Communication

RS232/USB/LAN, RS485/Wiegand/GPIO

Work Performance

High speed micro-processor controlled, running steadily

Detecting Range

Up to 50cm, depend on environment and tag

Work Mode

Support Master-Slave mode, Trigger/Automatic mode

RF Output

Less than 32dBm, Software Programmable

Fast Identify

Tags with more than 160Km/h speed can be identified

Software Support

Provide Communication Protocol, Windows API & Demo, VC/VB/C# source/sample code

Upgrade

Firmware can be upgraded easily by RS232/USB/LAN

Power Supply

DC 5V supply, less than 2A

Weight

2.0Kg

Dimension

305x305x20 mm (not including fitting)

Storage Temp

-30 ~ +85 degree celsius

Applications

Uhf Rfid Reader Arduino Quality Assurance for ApartmentL6023 10
1
Library, supermarket, shop, pearls and jewels shop, and other intelligent identification systems for close range detecting.
Uhf Rfid Reader Arduino Quality Assurance for ApartmentL6023 11
2
Logistics management, super market, warehouse, manufacturing and dock/containerStaff management, HR management, auto home and miner management.

Application


Examples

Description

Vehicle Management

Uhf Rfid Reader Arduino Quality Assurance for ApartmentL6023 12

Parking lot

Charge automation, pass in and out management

Highway Charge

Charge automation for highway, bridge and tunnel

Dock/Container

Container management in road, railway and dock

Vehicle Monitor

Vehicle monitor in traffic management

Logistics Management

Uhf Rfid Reader Arduino Quality Assurance for ApartmentL6023 13

Warehouse

Warehouse, Super market, Mailing, Package management

Manufacture

Monitor the products in production-line

Custom

Goods management for custom clearance

Anti-fake

Anti-fake for products

Staff Management

Uhf Rfid Reader Arduino Quality Assurance for ApartmentL6023 14

Access Control

Access control system for staff pass in and out

Work Attendance

Check on work attendance, HR management

Miner

Miner management, insurance

EduToHome

Students management between school and home

Application 1: Checking out in supermarket

图片2 (3)
图片2 (3)
图片1 (5)
图片1 (5)

Application 2: In Library

图片3 (3)
图片3 (3)

Application 3: Anti fake management for jewelry shop

图片4 (2)
图片4 (2)


Company Advantages

SHENZHEN LEADLANDLINK RFID TECHNOLOGY CO., LTD. is located in shen zhen and is a company specializing in RFID UHF,RFID Reader,,UHF Reader,UHF RFID Scanner,Access control,RFID Antenna,RFID TAG,RFID Ca business activities. LEADLANDLINK always believes we should be honest and reliable, pragmatic and truth-seeking, pioneering and innovative, which is our core value. We run our business based on the concept to be efficient, hard-working, professional and mutually beneficial. With the pursuit of excellence, we keep developing new products with new technology. We take a firm step towards modern enterprise. To meet the diversified needs of domestic and foreign customers, our company has domestic first-class R&D talents and a large-scale production team. LEADLANDLINK always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
We have been providing high quality uhf rfid reader arduino for a long time. We look forward to working with you.
