Product details of the rfid tag reader
Product Introduction
LEADLANDLINK rfid tag reader is available in diverse attractive design styles. Our excellent R&D team has greatly improved the quality and performance of our products. This product is widely used in the market for its excellent characteristics and significant advantages.
Product feature
The UHF RFID reader Module can connect with antenna, and you may choose our antenna with blue or red LED indicators, 12dBi gain or 8dBi gain. Polarization is vertical or horizontal while frequency is US standard 902 to 928MHz, EU band 865 to 868MHz, fixed frequency or FHSS. The unit supports RS-232, RS485 and Wiegand26/34/42/GPIO/LAN communication. RF output is less than 30dBm and is software programmable. Available software are API and demo sample (VC and VB). A flexible and easy-to-operate SDK file is provided.

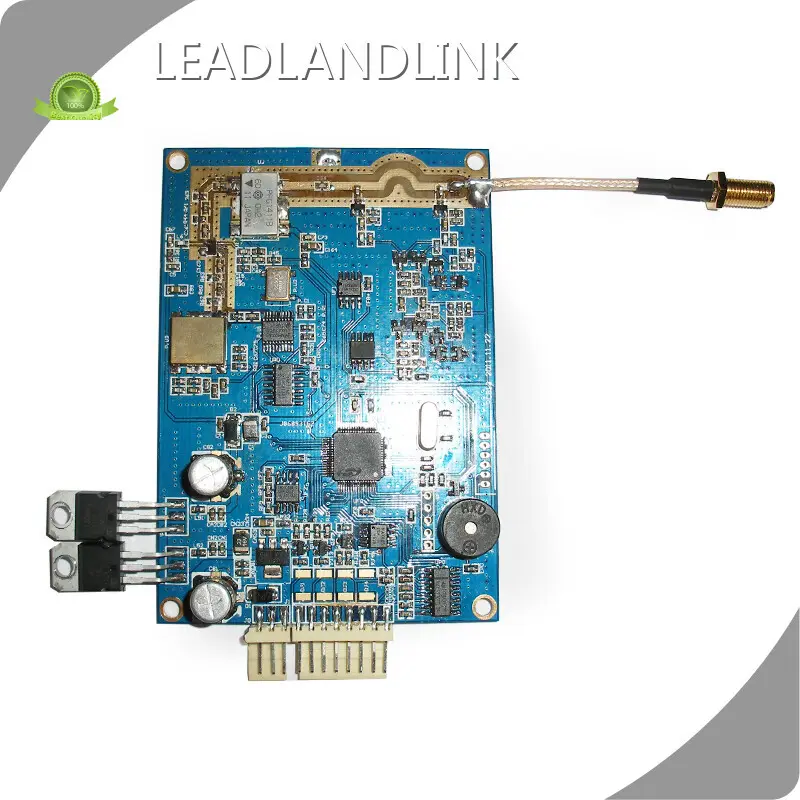

The 120x90x10mm RFID reader PCBA runs on 12VDC and 2A. It weighs 0.25kg. The product is a low-cost solution that is widely used for parking lots, access control, sport timing and other intelligent identification systems.
UHF RFID product supplier-Leadlandlink has a showroom in Shenzhen and one factory in Dongguan.
Warm reminder
● Note: All price quotes in this report are in US dollars unless otherwise specified. FOB prices were provided by the companies interviewed only as reference prices at the time of interview and may have changed.
● Disclaimer: All product images are provided by the companies interviewed and are for reference purposes only. Those product images featuring products with trademarks, brand names or logos are not intended for sale. We, our affiliates, and our affiliates' respective directors, officers, employees, representatives, agents or contractors, do not accept and will not have any responsibility or liability for product images (or any part thereof) which infringe on any intellectual property or other rights of a third party.
Product parameter
Item |
Parameters & Performance |
Reader-Tag Protocol |
ISO18000-6B, EPC Class1 Gen2 |
Antenna Port |
SMA Male or Female |
Frequency Band |
US(902-928MHz), EU(865-868MHz), CN(920-925MHz), other frequency band. |
Frequency Mode |
Fixed frequency mode / FHSS frequency mode |
Communication |
RS232/USB, RS485/Wiegand/Trigger |
Detecting Range |
Up to 15meters, depend on environment and tag |
RF Output |
Less than 32dBm, Software Programmable |
Software Support |
Provide Communication Protocol, Windows API & Demo, VC/VB/C# source/sample code |
Power Supply |
DC 12V supply, less than 2A |
Dimension |
120x90x10 mm (not including antennas and fittings) |
Weight |
0.25Kg |
Storage Temp |
-30 ~ +85 degree celsius |
Operation Temp |
-20 ~ +80 degree celsius |
Anti-thunder Protection |
Shell direct to the ground, communication 1.5KV surge endurance |
Work Performance |
High speed micro-processor controlled, running steadily |
Work Mode |
Support Master-Slave mode, Trigger/Automatic mode |
Fast Identify |
Tags with more than 160Km/h speed can be identified |
Upgrade |
Firmware can be upgraded easily by RS232/USB/LAN |
Applications
Application |
Photo |
Examples |
Description |
Vehicle Management |
|
Parking lot |
Charge automation, pass in and out management |
Highway Charge |
Charge automation for highway, bridge and tunnel |
||
Dock/Container |
Container management in road, railway and dock |
||
Vehicle Monitor |
Vehicle monitor in traffic management |
||
Logistics Management |
|
Warehouse |
Warehouse, Super market, Mailing, Package management |
Manufacture |
Monitor the products in production-line |
||
Custom |
Goods management for custom clearance |
||
Anti-fake |
Anti-fake for products |
||
Staff Management |
|
Access Control |
Access control system for staff pass in and out |
Work Attendance |
Check on work attendance, HR management |
||
Miner |
Miner management, insurance |
||
EduToHome |
Students management between school and home |
