Model:

L6012

Certification:

FCC

FOB price:

Negotiable

Inquiry

Company Advantages

· All indicators and processes of LEADLANDLINK rfid card reader meet the requirements of national indicators.

· Because of its property of rfid card reader, our products can be applied into different occasions widely.

· SHENZHEN LEADLANDLINK RFID TECHNOLOGY CO., LTD.’s development strategy will be started from the needs and experience of customers.

Product feature

The RFID reader integrates blue or red LED indicators, and an antenna with 12dBi gain. Polarization is vertical or horizontal while frequency is US standard 902 to 928MHz, EU band 865 to 868MHz, fixed frequency or FHSS. The unit supports RS-232, RS485 and Wiegand26/34/42/GPIO/LAN communication. RF output is less than 30dBm and is software programmable. Available software are API and demo sample (VC and VB). A flexible and easy-to-operate SDK file is provided.

The 370x370x60mm RFID reader runs on 12VDC and 2A. It weighs 3.5kg. Installation pole diameter is 60x70mm and mechanical tilt can reach 15 degrees. The product is a low-cost solution that is widely used for parking lots, access control, sport timing and other intelligent identification systems.

UHF RFID product supplier-Leadlandlink has a showroom in Shenzhen and one factory in Dongguan.

Warm reminder

● Note: All price quotes in this report are in US dollars unless otherwise specified. FOB prices were provided by the companies interviewed only as reference prices at the time of interview and may have changed.

● Disclaimer: All product images are provided by the companies interviewed and are for reference purposes only. Those product images featuring products with trademarks, brand names or logos are not intended for sale. We, our affiliates, and our affiliates' respective directors, officers, employees, representatives, agents or contractors, do not accept and will not have any responsibility or liability for product images (or any part thereof) which infringe on any intellectual property or other rights of a third party.

Product display

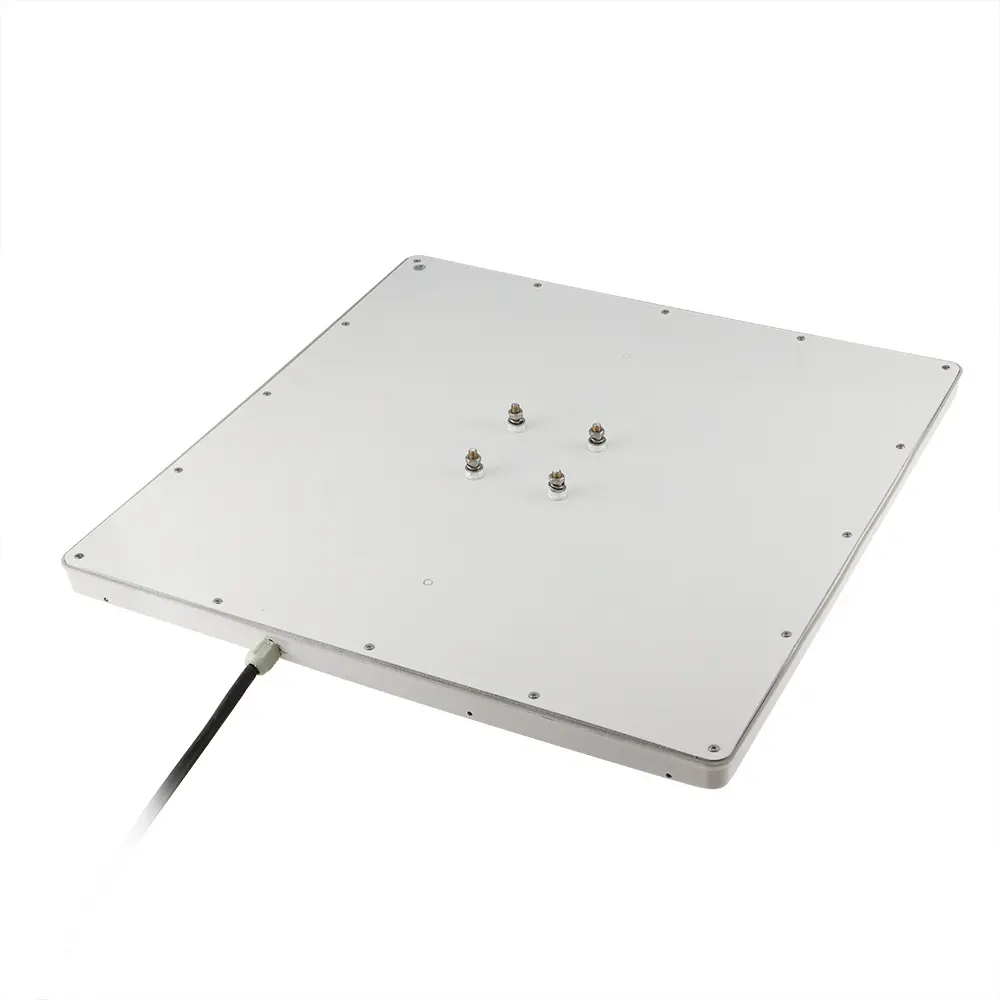

L6012 rfid reader-1 (2)

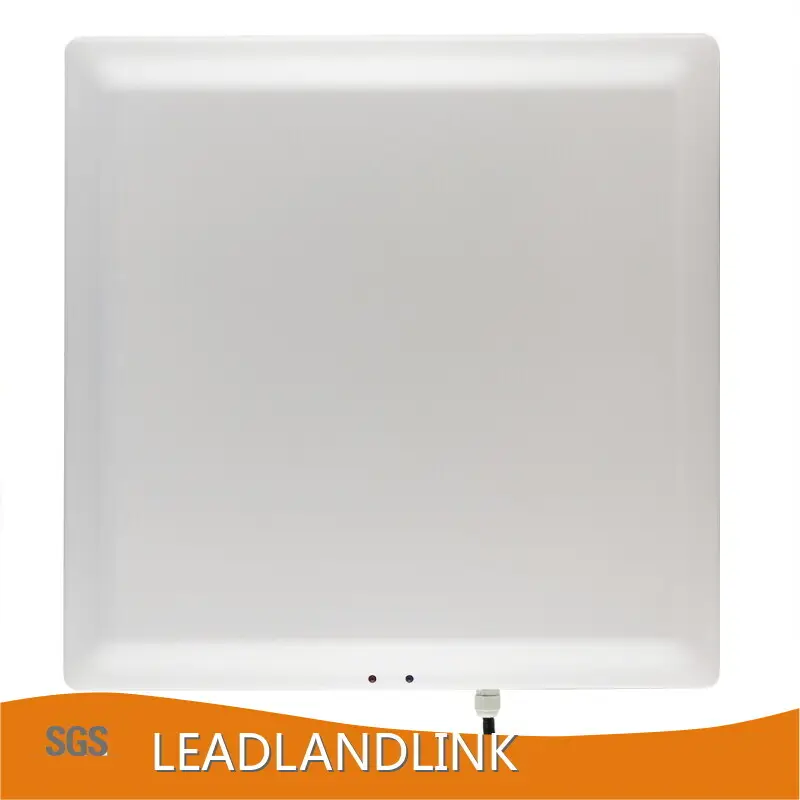

New Model L6012

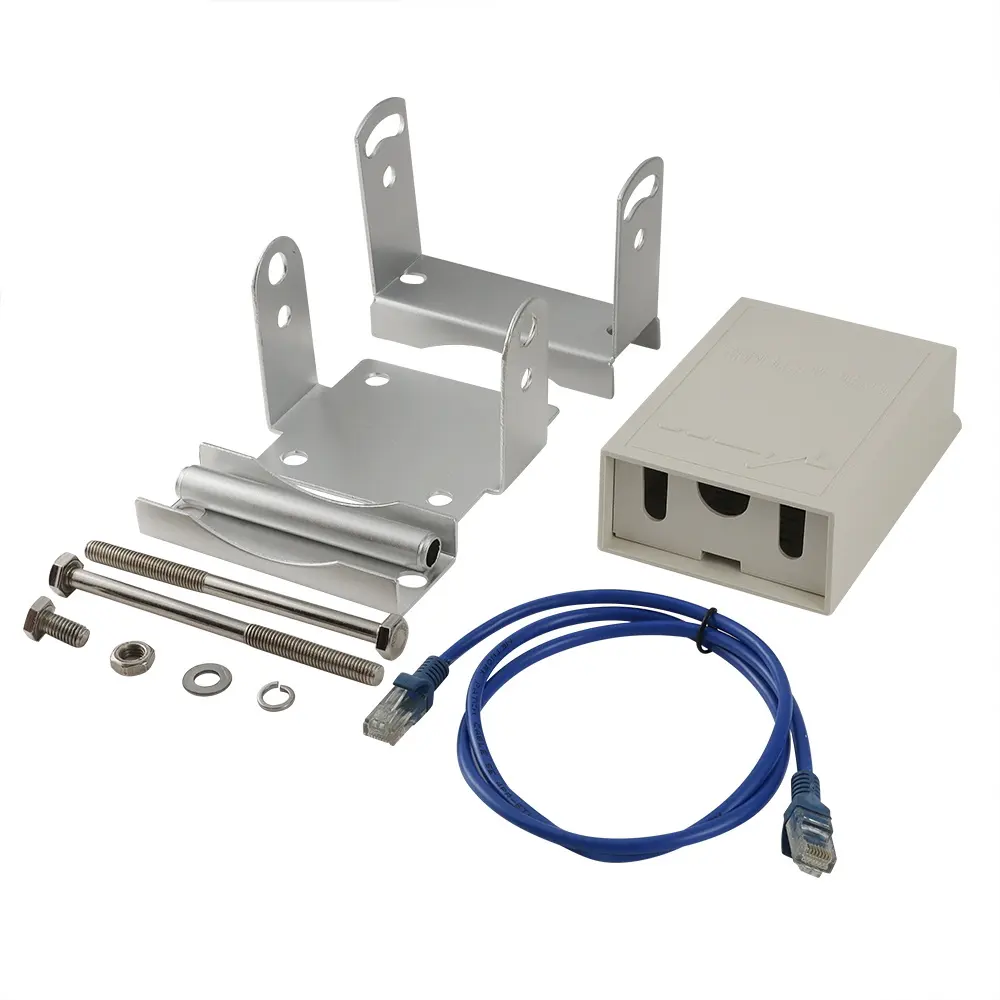

Accessories for L6012 rfid reader (2)

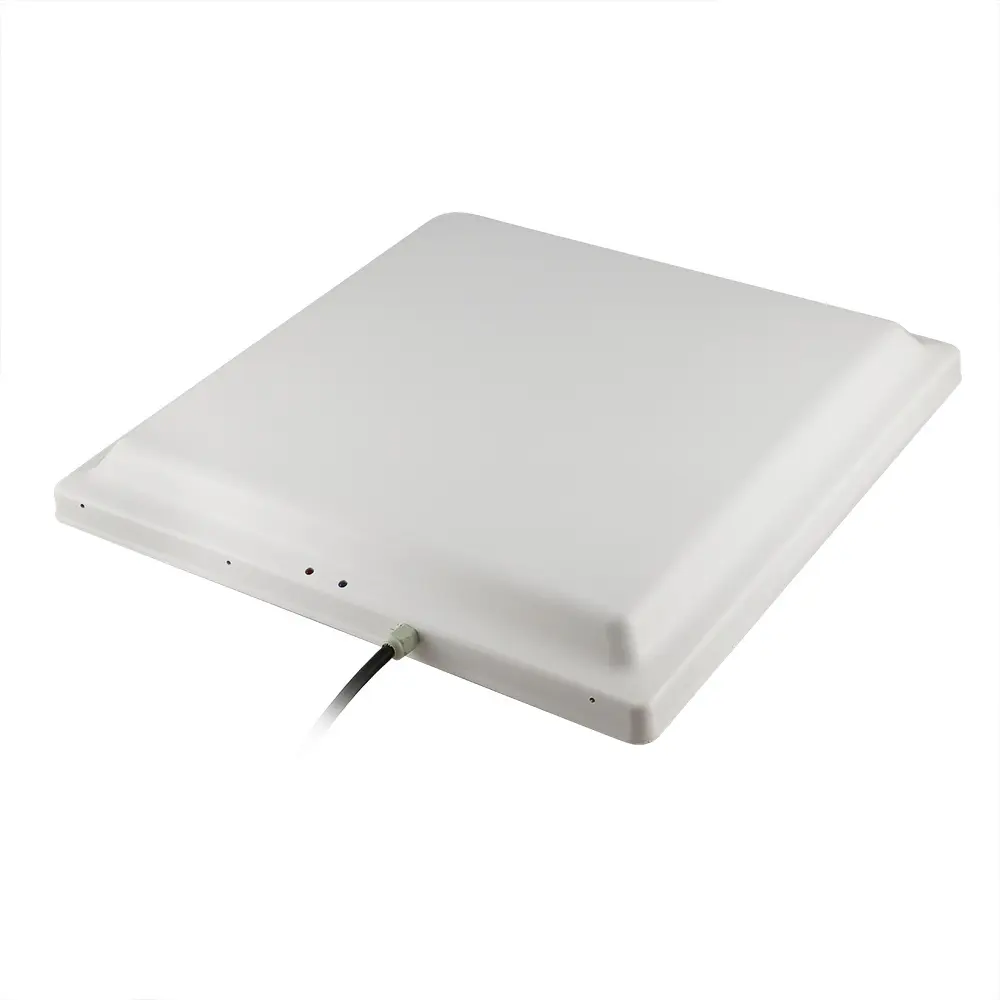

L6012 rfid reader-6

Product parameter

Item	Parameters & Performance	Item	Parameters & Performance
Reader-Tag Protocol	ISO18000-6B, EPC Class1 Gen2	Weight	3.5Kg
Antenna Port	Integrated antenna, Horizontal Polarization	Pole Diameter	40-50mm
Frequency Band	US(902-928MHz), EU(865-868MHz), CN(920-925MHz), other frequency band.	Storage Temp	-30 ~ +85 degree celsius
Frequency Mode	Fixed frequency mode / FHSS frequency mode	Operation Temp	-20 ~ +80 degree celsius
Communication	RS232/USB/LAN, RS485/Wiegand/GPIO	Anti-thunder Protection	Shell direct to the ground, communication 1.5KV surge endurance
Detecting Range	Up to 30meters, depend on environment and tag	Work Performance	High speed micro-processor controlled, running steadily
RF Output	Less than 32dBm, Software Programmable	Work Mode	Support Master-Slave mode, Trigger/Automatic mode
Software Support	Provide Communication Protocol, Windows API & Demo, VC/VB/C# source/sample code	Fast Identify	Tags with more than 160Km/h speed can be identified
Power Supply	DC 12V supply, less than 2A	Upgrade	Firmware can be upgraded easily by RS232/USB/LAN
Dimension	370x370x60 mm (not including fitting)

Applications

Rfid Card Reader for Apartment Negotiablebest Supplier 15

Vehicle management, garage management, parking lot, highway

Rfid Card Reader for Apartment Negotiablebest Supplier 16

Logistics management, super market, warehouse, manufacturing and dock/container

Rfid Card Reader for Apartment Negotiablebest Supplier 17

Staff management, HR management, auto home and miner management

Application	Photo	Examples	Description
Vehicle Management		Parking lot	Charge automation, pass in and out management
		Highway Charge	Charge automation for highway, bridge and tunnel
		Dock/Container	Container management in road, railway and dock
		Vehicle Monitor	Vehicle monitor in traffic management
Logistics Management		Warehouse	Warehouse, Super market, Mailing, Package management
		Manufacture	Monitor the products in production-line
		Custom	Goods management for custom clearance
		Anti-fake	Anti-fake for products
Staff Management		Access Control	Access control system for staff pass in and out
		Work Attendance	Check on work attendance, HR management
		Miner	Miner management, insurance
		EduToHome	Students management between school and home

Application

This is on site of application~Leadlandlink Uhf rfid reader applied in one lane of Airport in Africa, it has been successfully running for over two years.
