Professional Rfid Chip Reader Writer Price List

Model:
L6011
Certification:
FCC
FOB price:
Negotiable
Inquiry
Send your inquiry

Product details of the rfid chip reader writer


Quick Overview

Our rich production experience makes sure LEADLANDLINK rfid chip reader writer is perfect in craftsmanship. As our QC team is well-trained and keeps up with the trends, its quality has been greatly improved. The rfid chip reader writer developed by our company can play a role in various fields. LEADLANDLINK's outstanding business team upholds a customer-oriented attitude and carefully listens to customers' needs.


Product Description

More detailed information on rfid chip reader writer is shown for you at below.

Product feature

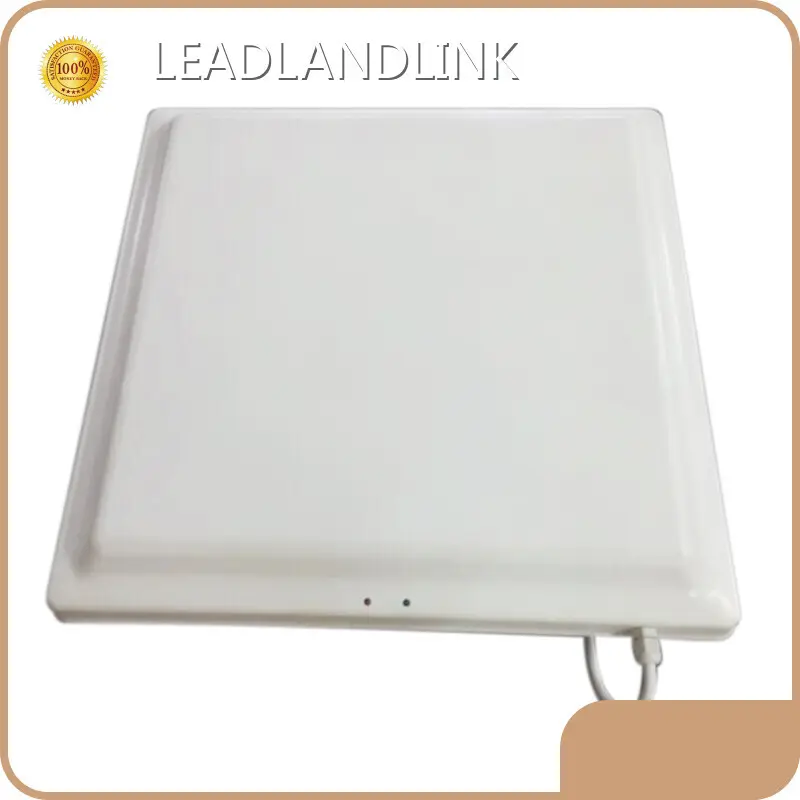

The RFID reader integrates blue or red LED indicators, and an antenna with 12dBi gain.  Polarization is vertical or horizontal while frequency is US standard 902 to 928MHz, EU band 865 to 868MHz, fixed frequency or FHSS.  The unit supports RS-232, RS485 and Wiegand26/34/42/GPIO/LAN communication.  RF output is less than 30dBm and is software programmable.  Available software are API and demo sample (VC and VB).  A flexible and easy-to-operate SDK file is provided.

The 450x450x60mm RFID reader runs on 12VDC and 2A.  It weighs 4kg.  Installation pole diameter is 60x70mm and mechanical tilt can reach 15 degrees.  The product is a low-cost solution that is widely used for parking lots, access control, sport timing and other intelligent identification systems.

UHF RFID product supplier-Leadlandlink has a showroom in Shenzhen and one factory in Dongguan.

6 (3)
Fittings

Warm reminder

Note: All price quotes in this report are in US dollars unless otherwise specified.  FOB prices were provided by the companies interviewed only as reference prices at the time of interview and may have changed.

Disclaimer: All product images are provided by the companies interviewed and are for reference purposes only.  Those product images featuring products with trademarks, brand names or logos are not intended for sale.  We, our affiliates, and our affiliates' respective directors, officers, employees, representatives, agents or contractors, do not accept and will not have any responsibility or liability for product images (or any part thereof) which infringe on any intellectual property or other rights of a third party.

Product display

6 (3)
6 (3)
Waterproof Power Supply B (4)
Waterproof Power Supply B (4)
Waterproof Power Supply B (3)
Waterproof Power Supply B (3)
5 (2)
5 (2)

Product parameter

Item

Parameters & Performance

Item

Parameters & Performance

Reader-Tag Protocol

ISO18000-6B, EPC Class1 Gen2

Antenna Port

Integrated antenna, Horizontal Polarization

Frequency Band

US(902-928MHz), EU(865-868MHz), CN(920-925MHz), other frequency band.

Frequency Mode

Fixed frequency mode / FHSS frequency mode

Communication

RS232/USB/LAN, RS485/Wiegand/GPIO

Detecting Range

Up to 30meters, depend on environment and tag

RF Output

Less than 32dBm, Software Programmable

Software Support

Provide Communication Protocol, Windows API & Demo, VC/VB/C# source/sample code

Power Supply

DC 12V supply, less than 2A

Dimension

450x450x60 mm (not including fitting)

Weight

4.0Kg

Pole Diameter

40-50mm

Storage Temp

-30 ~ +85 degree celsius

Operation Temp

-20 ~ +80 degree celsius

Anti-thunder Protection

Shell direct to the ground, communication 1.5KV surge endurance

Work Performance

High speed micro-processor controlled, running steadily

Work Mode

Support Master-Slave mode, Trigger/Automatic mode

Fast Identify

Tags with more than 160Km/h speed can be identified

Upgrade

Firmware can be upgraded easily by RS232/USB/LAN



Applications

Professional Rfid Chip Reader Writer Price List 14
1
Vehicle management, garage management, parking lot, highway
Professional Rfid Chip Reader Writer Price List 15
2
Logistics management, super market, warehouse, manufacturing and dock/container
Professional Rfid Chip Reader Writer Price List 16
3
Staff management, HR management, auto home and miner management

Application


Examples

Description

Vehicle Management

Professional Rfid Chip Reader Writer Price List 17

Parking lot

Charge automation, pass in and out management

Highway Charge

Charge automation for highway, bridge and tunnel

Dock/Container

Container management in road, railway and dock

Vehicle Monitor

Vehicle monitor in traffic management

Logistics Management

Professional Rfid Chip Reader Writer Price List 18

Warehouse

Warehouse, Super market, Mailing, Package management

Manufacture

Monitor the products in production-line

Custom

Goods management for custom clearance

Anti-fake

Anti-fake for products

Staff Management

Professional Rfid Chip Reader Writer Price List 19

Access Control

Access control system for staff pass in and out

Work Attendance

Check on work attendance, HR management

Miner

Miner management, insurance

EduToHome

Students management between school and home

Application 1

This is on site of application~Leadlandlink Uhf rfid reader applied in Saudi Arabia many years ago, for vehichle management.
