Product details of the small uhf rfid antenna
Product Introduction
The production process of LEADLANDLINK small uhf rfid antenna is highly mechanized and automated. This product has good performance and long service life. SHENZHEN LEADLANDLINK RFID TECHNOLOGY CO., LTD. has achieved a competitive advantage by orientating the market accurately.
Product feature

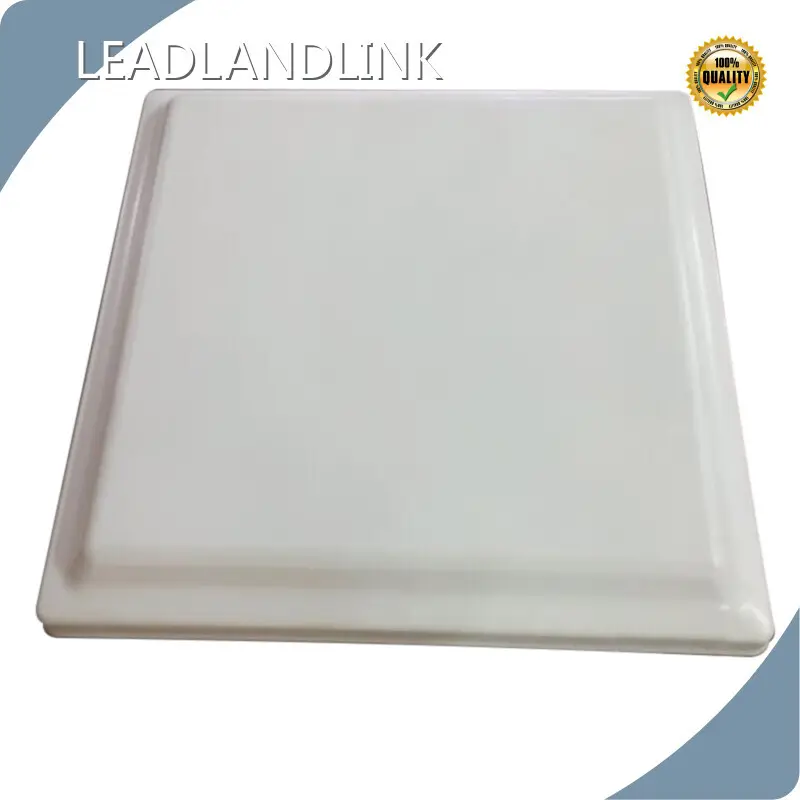

The RFID antenna integrates blue or red LED indicators, with 12dBi gain. Polarization is vertical or horizontal while frequency is US standard 902 to 928MHz, EU band 865 to 868MHz, fixed frequency or FHSS. The unit matches with our multi-ports UHF RFID Reader independently, like our model L6002 with two ports, L6004 with 4 ports.
The 450x450x60mm RFID antenna runs on 12VDC and 2A. It weighs 3kg. Installation pole diameter is 60x70mm and mechanical tilt can reach 15 degrees. The product is a low-cost solution that is widely used for parking lots, access control, sport timing and other intelligent identification systems.
UHF RFID product supplier-Leadlandlink has a showroom in Shenzhen and one factory in Dongguan.
Warm reminder
● Note: All price quotes in this report are in US dollars unless otherwise specified. FOB prices were provided by the companies interviewed only as reference prices at the time of interview and may have changed.
● Disclaimer: All product images are provided by the companies interviewed and are for reference purposes only. Those product images featuring products with trademarks, brand names or logos are not intended for sale. We, our affiliates, and our affiliates' respective directors, officers, employees, representatives, agents or contractors, do not accept and will not have any responsibility or liability for product images (or any part thereof) which infringe on any intellectual property or other rights of a third party.
Product parameter
Item |
Photo & Parameters |
|
Model No. |
LA010 |
|
Model Name |
UHF RFID Antenna |
|
Product Aspect |
Aspect |
Fitting |
|
|
|
Electrical Specifications: | ||
Frequency Range |
US band (902-928MHz), EU band (865-868MHz) |
|
Gain |
12 dBi |
|
Beam Width |
E-Plane: 60 degree H-Plane: 60 degree |
|
F/B |
>22 dB |
|
VSWR |
<1.5 |
|
Polarization |
Horizontal/Vertical |
|
Max Power |
100W |
|
Impedance |
50 oHm |
|
Lightning protection |
Direct Ground |
|
Mechanical Specifications: |
||
Max wind velocity |
216 Km/h |
|
Connector |
SMA-Female |
|
Dimensions |
450x450x60 mm |
|
Weight |
3.9 Kg |
|
Mounting kits Weight |
3.0 Kg |
|
Diameter Of Installation Pole |
D60x70 |
|
Mechanical Tilt |
0 ~ 15 degree |
Applications
Application |
Photo |
Examples |
Description |
Vehicle Management |
|
Parking lot |
Charge automation, pass in and out management |
Highway Charge |
Charge automation for highway, bridge and tunnel |
||
Dock/Container |
Container management in road, railway and dock |
||
Vehicle Monitor |
Vehicle monitor in traffic management |
||
Logistics Management |
|
Warehouse |
Warehouse, Super market, Mailing, Package management |
Manufacture |
Monitor the products in production-line |
||
Custom |
Goods management for custom clearance |
||
Anti-fake |
Anti-fake for products |
||
Staff Management |
|
Access Control |
Access control system for staff pass in and out |
Work Attendance |
Check on work attendance, HR management |
||
Miner |
Miner management, insurance |
||
EduToHome |
Students management between school and home |
Company Feature
• LEADLANDLINK has vigorously explored the domestic and overseas markets in various ways. RFID UHF,RFID Reader,,UHF Reader,UHF RFID Scanner,Access control,RFID Antenna,RFID TAG,RFID Ca are currently sold well in some countries and regions in Europe, America, and Australia.
• Since the establishment, LEADLANDLINK has always been adhering to the service concept to serve every customer wholeheartedly. We receive acclaim from customers by providing thoughtful and caring services.
• Our company was established in During the development, we have introduced advanced science and technology and production equipment, and explored constantly. As a result, an industrial development path has formed.
• The high-quality talents team is an important human resource for our company. For one thing, they have rich theoretical knowledge in the principle, operation and process for the equipment. For another thing, they are rich in practical maintenance operations.
LEADLANDLINK produces and sells our tools directly from the factory. Your call, presence and cooperation are welcome.
