Company Advantages
· LEADLANDLINK rfid tag reader price is available in various innovative and functional designs.
· The highest possible quality and consistency of this product are guaranteed through the continuous monitoring of all processes, the strict quality management system, a final quality check, etc.
· Being mainly devoted into manufacturing rfid tag reader price, LEADLANDLINK enjoys a high reputation in the industry.
Product feature

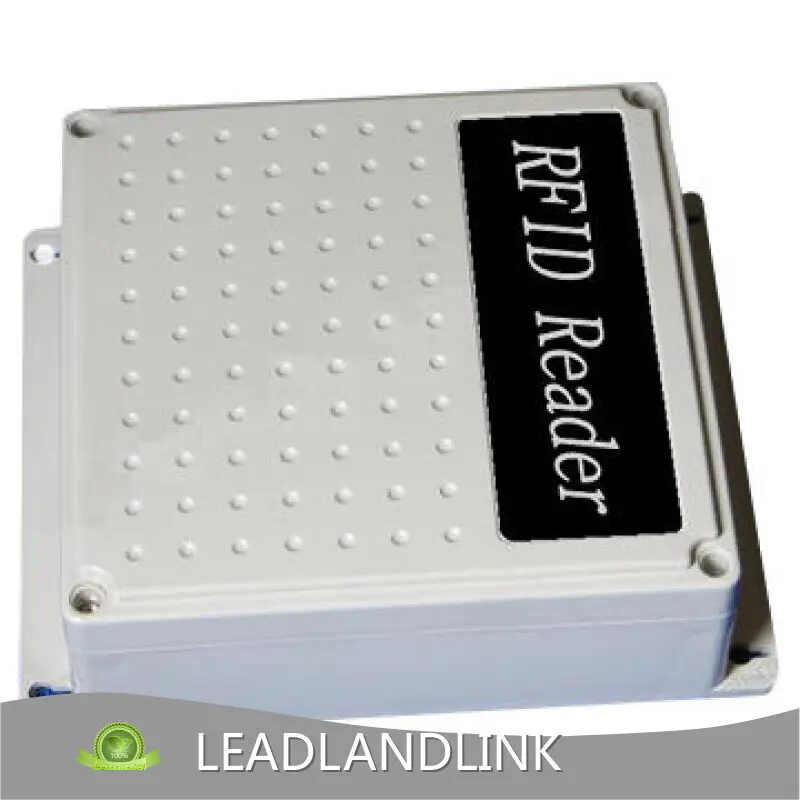

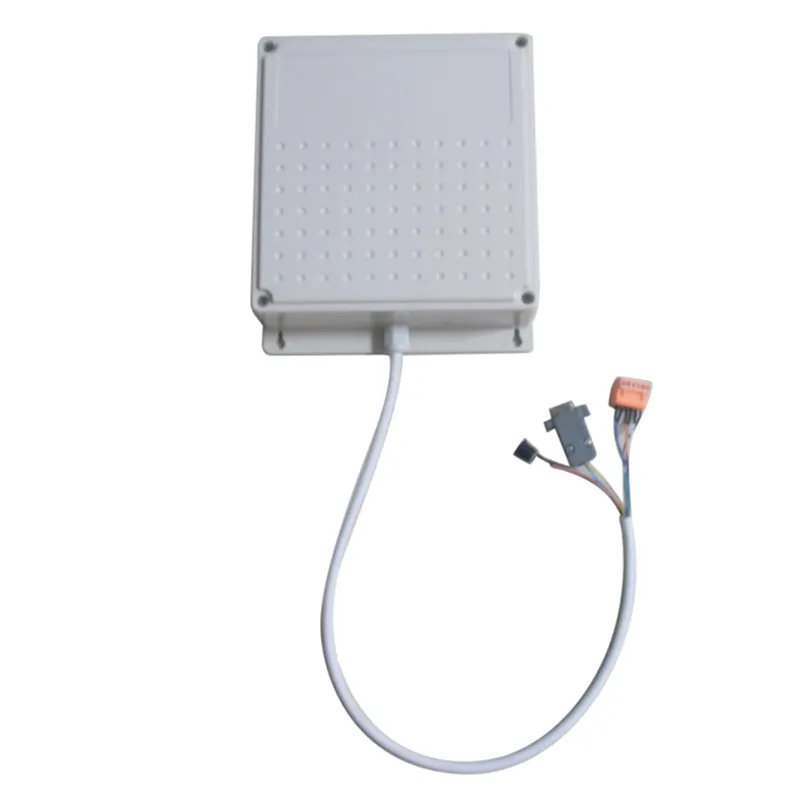

The table tray RFID reader integrates antenna inside. Polarization is vertical or horizontal or circular while frequency is US standard 902 to 928MHz, EU band 865 to 868MHz, fixed frequency or FHSS. The unit supports RS-232, RS485 and Wiegand26/34/42/GPIO/LAN communication. RF output is less than 30dBm and is software programmable. Available software are API and demo sample (VC and VB). A flexible and easy-to-operate SDK file is provided.
The 305x305x20mm RFID reader runs on 5VDC and 1A. It weighs 2kg. The product is a low-cost solution that is widely used for library, supermarket,shop, Pearls and jewels shop, and other intelligent identification systems.
UHF RFID product supplier-Leadlandlink has a showroom in Shenzhen and one factory in Dongguan.
Warm reminder
● Note: All price quotes in this report are in US dollars unless otherwise specified. FOB prices were provided by the companies interviewed only as reference prices at the time of interview and may have changed.
● Disclaimer: All product images are provided by the companies interviewed and are for reference purposes only. Those product images featuring products with trademarks, brand names or logos are not intended for sale. We, our affiliates, and our affiliates' respective directors, officers, employees, representatives, agents or contractors, do not accept and will not have any responsibility or liability for product images (or any part thereof) which infringe on any intellectual property or other rights of a third party.
Product parameter
Item |
Parameters & Performance |
Item |
Parameters & Performance |
Reader-Tag Protocol |
ISO18000-6B, EPC Class1 Gen2 |
Weight |
2.0Kg |
Antenna Port |
Integrated antenna, Horizontal Polarization or circular |
Storage Temp |
-30 ~ +85 degree celsius |
Frequency Band |
US(902-928MHz), EU(865-868MHz), CN(920-925MHz), other frequency band. |
Operation Temp |
-20 ~ +80 degree celsius |
Frequency Mode |
Fixed frequency mode / FHSS frequency mode |
Anti-thunder Protection |
Shell direct to the ground, communication 1.5KV surge endurance |
Communication |
RS232/USB/LAN, RS485/Wiegand/GPIO |
Work Performance |
High speed micro-processor controlled, running steadily |
Detecting Range |
Up to 50cm, depend on environment and tag |
Work Mode |
Support Master-Slave mode, Trigger/Automatic mode |
RF Output |
Less than 32dBm, Software Programmable |
Fast Identify |
Tags with more than 160Km/h speed can be identified |
Software Support |
Provide Communication Protocol, Windows API & Demo, VC/VB/C# source/sample code |
Upgrade |
Firmware can be upgraded easily by RS232/USB/LAN |
Power Supply |
DC 5V supply, less than 2A |
Weight |
2.0Kg |
Dimension |
305x305x20 mm (not including fitting) |
Storage Temp |
-30 ~ +85 degree celsius |
Applications
Application 1: Checking out in supermarket
Application 2: In Library
Application 3: Anti fake management for jewelry shop
Company Features
· SHENZHEN LEADLANDLINK RFID TECHNOLOGY CO., LTD. specializes in the production of a variety of rfid tag reader price.
· By implementing modern technology, the strength of LEADLANDLINK has been greatly improved. Our professional QC team contributes to the quality of rfid tag reader price a lot.
· Since its entry into the oversea market, SHENZHEN LEADLANDLINK RFID TECHNOLOGY CO., LTD. has been adhering to the high standard. Inquire!
Product Details
LEADLANDLINK's rfid tag reader price is exquisite in details.
Enterprise Advantages
LEADLANDLINK has an efficient and practical team. With the pursuit of excellence, our team members carry out strict control over every aspect, from production to sales and transportation.
Our company has always adhered to the service concept of 'based on integrity and treat people sincerely', and we provide considerate one-stop service for consumers to solve problems promptly.
LEADLANDLINK always pays attention to customers and sincere services. We are committed to providing high-quality products and comprehensive services for numerous customers. We aim to become a renowned and leading enterprise in the domestic market.
LEADLANDLINK, founded in has been developing for years and has become a head company in the industry.
We have a large and complete sales network. Therefore, some of the products have been exported overseas and they are very popular among overseas consumers.
