Product feature
The Handheld RFID reader integrates an antenna inside, and it can also read NFC card, 1D scanning, 2D scanning...
The Handheld RFID reader runs by chargeable polymer battery. It weighs 300g. The product is a low-cost solution that is widely used for logistic, warehouse, library, and other intelligent identification systems.
UHF RFID product supplier-Leadlandlink has a showroom in Shenzhen and one factory in Dongguan.
Warm reminder
● Note: All price quotes in this report are in US dollars unless otherwise specified. FOB prices were provided by the companies interviewed only as reference prices at the time of interview and may have changed.
● Disclaimer: All product images are provided by the companies interviewed and are for reference purposes only. Those product images featuring products with trademarks, brand names or logos are not intended for sale. We, our affiliates, and our affiliates' respective directors, officers, employees, representatives, agents or contractors, do not accept and will not have any responsibility or liability for product images (or any part thereof) which infringe on any intellectual property or other rights of a third party.

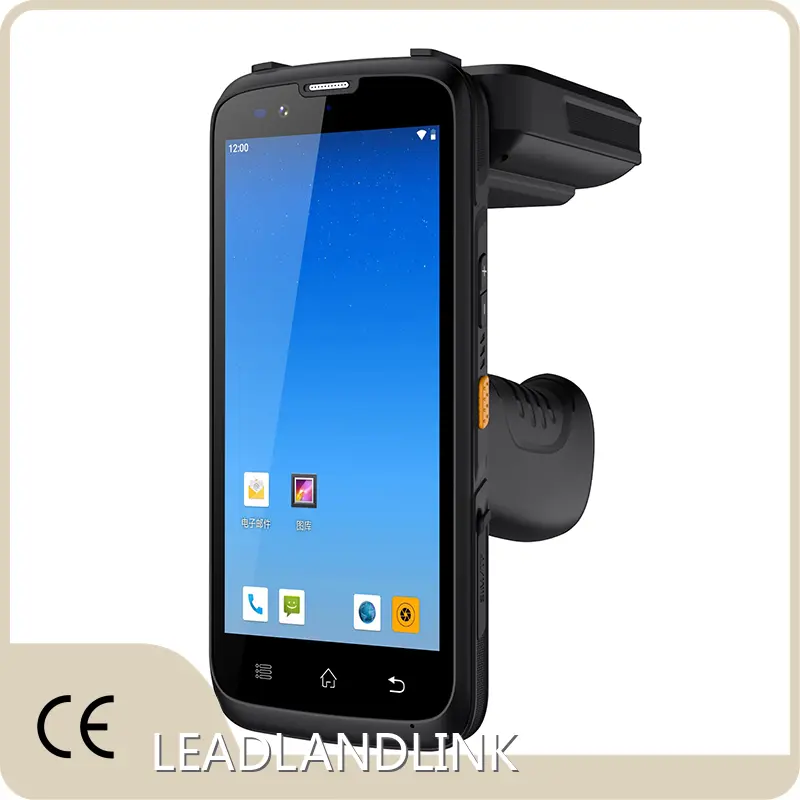

LH70
● UHF HANDHELD READ-WRITE INTELLIGENT TERMINAL
● Android 9.0 system ·UHF ultra long distance reading and writing
● 5.7-inch HD Durable large Display · High speed Octa- core
Product parameter
Product parameters |
|
Performance |
|
Octa core |
|
CPU |
Cortex-A53 Octa-core 64-bit 2.0GHz high-performance processor |
RAM+ROM |
3GB+32GB Supports up to 4GB+64GB |
Expand memory |
Micro SD(TF) Supports up to 128GB |
System |
Android 9.0 |
Data communication |
|
WLAN |
Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol |
WWAN |
2G:GSM(850/900/1800/1900mhz) |
3G:WCDMA(850/900/1900/2100mhz) |
|
4G:FDD:B1/B3/B4/B7/B8/B12/B20 |
|
TDD:B38/B39/B40/B41 |
|
Bluetooth |
Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters |
GNSS |
Support Gps, Galileo, Glonass, Beidou |
Physical parameter |
|
Dimensions |
159mm×75mm×124mm |
Weight |
<500g (Depends on device function configuration) |
Display |
5.7 inch IPS color display with resolution 720*1440 |
TP |
Corning gorilla glass, Supports multi-touch Supported gloves and wet hands |
Battery capacity |
Rechargeable polymer battery (3.8V 5000MAh) removable |
Standby time >350 hours |
|
Working time > 12 hours |
|
Charging time 3-4H, Using standard power adapter and data cable |
|
Expansion Card slot |
PSAM x 2, Nano SIM card x 1 , TF card × 1 |
Communication interface |
Type-C USB x 1, OTG |
Audio |
Speaker (mono), Microphone, Earpiece |
Keypad |
Power button, Volume +/- button,Scan button × 2 Handle scan button ×1 |
Sensors |
Gravity sensor, Light sensor, Proximity sensor, Vibration motor |
Data collection |
|
Barcode scanning (Optional) |
|
2D Imager scanner |
Honeywell N3603 |
2D Symbologies |
PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, Maxicode,Hanxin Code,etc. |
UHF (Optional) |
|
Engine |
Engine CM2000-1, based on Impinj Indy R2000 |
Frequency(CHN) |
920-925MHz |
Frequency(USA) |
902-928MHz |
Frequency(EHR) |
865-868MHz(ETSI EN 302 208) |
Frequency(Other) |
Other multinational frequency standards (can be customized) |
Protocol |
EPC C1 GEN2 / ISO18000-6C/6B |
Antenna |
Circularly polarized antenna (3dBi) |
Power |
30dBm, support +5dBm ~ +30dBm adjustment |
Distance |
0-13m |
Reading speed |
>200 tags per second (circular polarization) |
Note:*Card reading distance and group reading rate are related to the actual environment |
|
Camera |
|
Rear camera |
13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting |
Front camera |
2MP color camera |
NFC |
|
Frequency |
13.56MHz |
Protocol |
Support ISO14443A/B, 15693 agreement |
Distance |
2cm-5cm |
Language/input method |
|
Input |
English, Pinyin, Five strokes, Handwriting input, Support soft keypad |
Language |
Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian,etc. |
User environment |
|
Operating temperature |
-20℃ - 55℃ |
Storage temperature |
-40℃ - 70℃ |
Environment humidity |
5%RH--95%RH(no condensation) |
Drop specification |
6 sides Supports 1.2 meters drops and 30 times to the concrete within the operating temperature |
Rolling test |
500×0.5m rolling for 6 sides |
Sealing |
IP66 |
Accessories |
|
Standard |
Adapter, Data cable, Protective film, Instruction manual |
Applications
Application |
Photo |
Examples |
Description |
Vehicle Management |
|
Parking lot |
Charge automation, pass in and out management |
Highway Charge |
Charge automation for highway, bridge and tunnel |
||
Dock/Container |
Container management in road, railway and dock |
||
Vehicle Monitor |
Vehicle monitor in traffic management |
||
Logistics Management |
|
Warehouse |
Warehouse, Super market, Mailing, Package management |
Manufacture |
Monitor the products in production-line |
||
Custom |
Goods management for custom clearance |
||
Anti-fake |
Anti-fake for products |
||
Staff Management |
|
Access Control |
Access control system for staff pass in and out |
Work Attendance |
Check on work attendance, HR management |
||
Miner |
Miner management, insurance |
||
EduToHome |
Students management between school and home |
Company Advantages
· While producing LEADLANDLINK rfid scanner usb, the selection of raw materials is strictly control.
· Our focus on researching and developing new technology makes the quality and performance of the product lead in the industry.
· SHENZHEN LEADLANDLINK RFID TECHNOLOGY CO., LTD. implements a strict internal quality control system to reward customers with superior quality.
Company Features
· SHENZHEN LEADLANDLINK RFID TECHNOLOGY CO., LTD. mainly manufacturing rfid scanner usb by advanced technology and superior material.
· The new technology has been applied to the production of rfid scanner usb.
· Part of the strength of our company comes from talented people. Though already being recognized as experts in the field, they never stop learning through lectures at conferences and events. They allow the company to provide exceptional service.
Application of the Product
The rfid scanner usb produced by LEADLANDLINK has a wide range of applications.
LEADLANDLINK has professional engineers and technicians, so we are able to provide one-stop and comprehensive solutions for customers.
