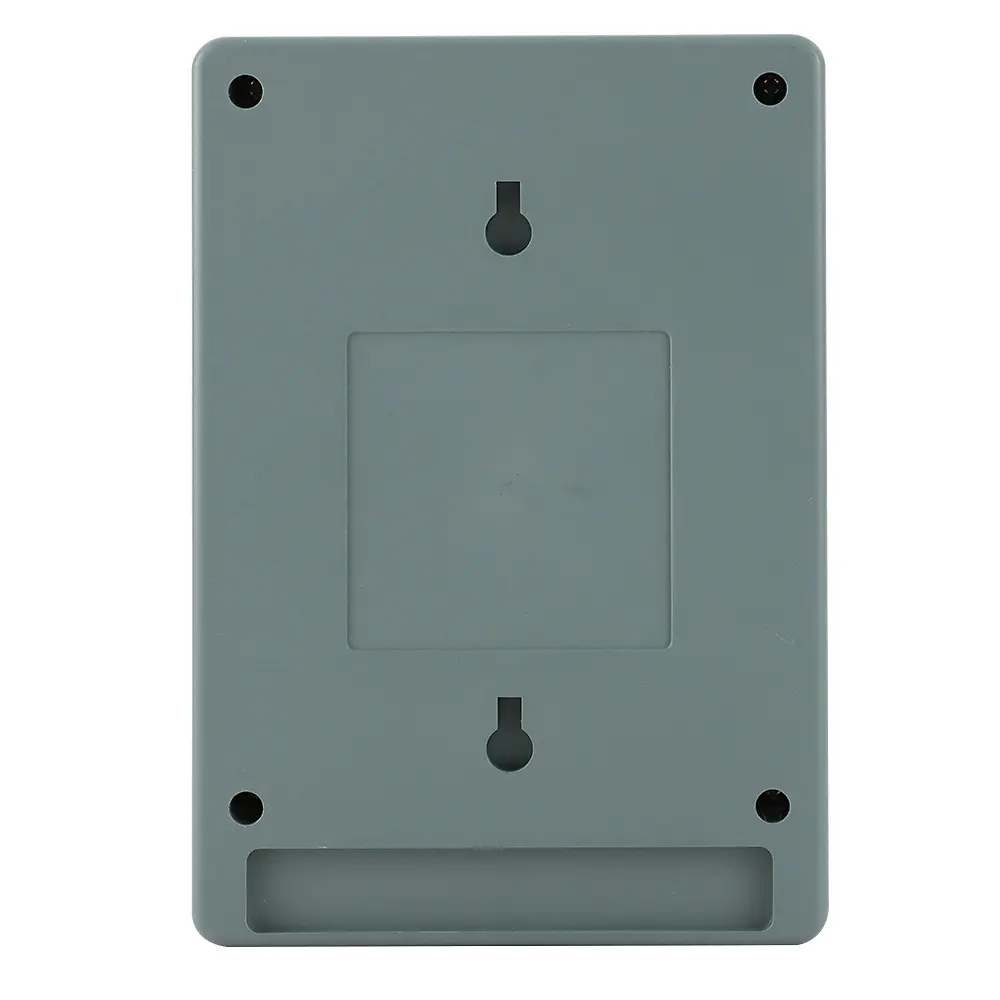

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 1

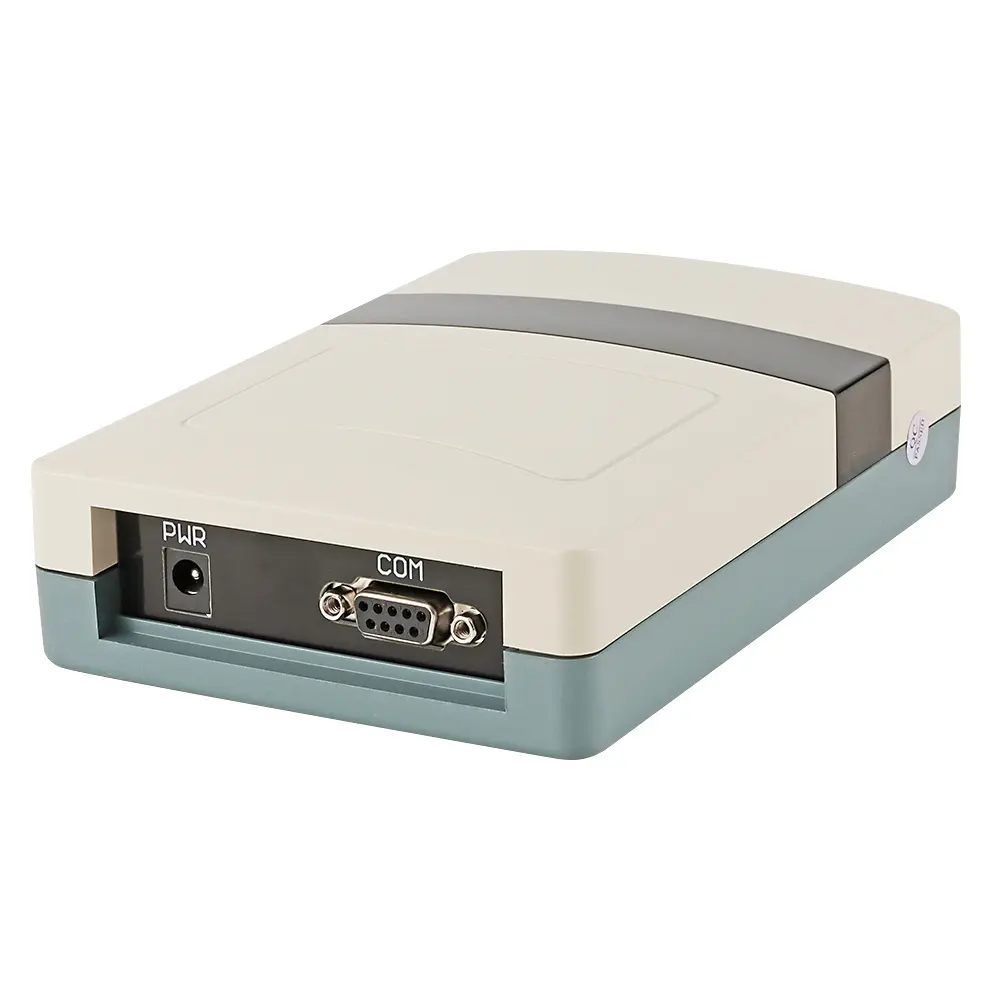

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 2

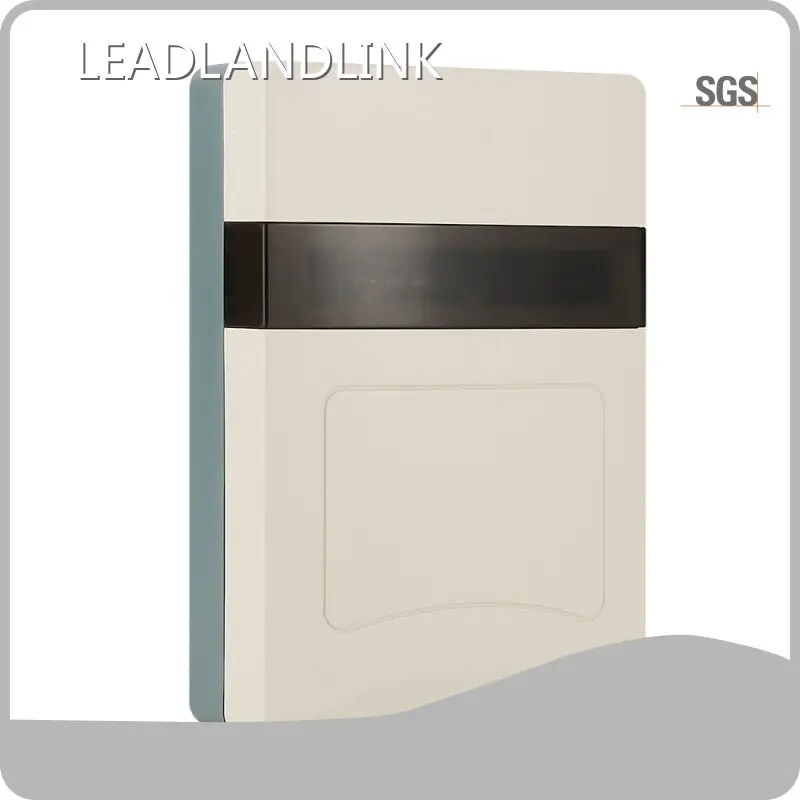

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 3

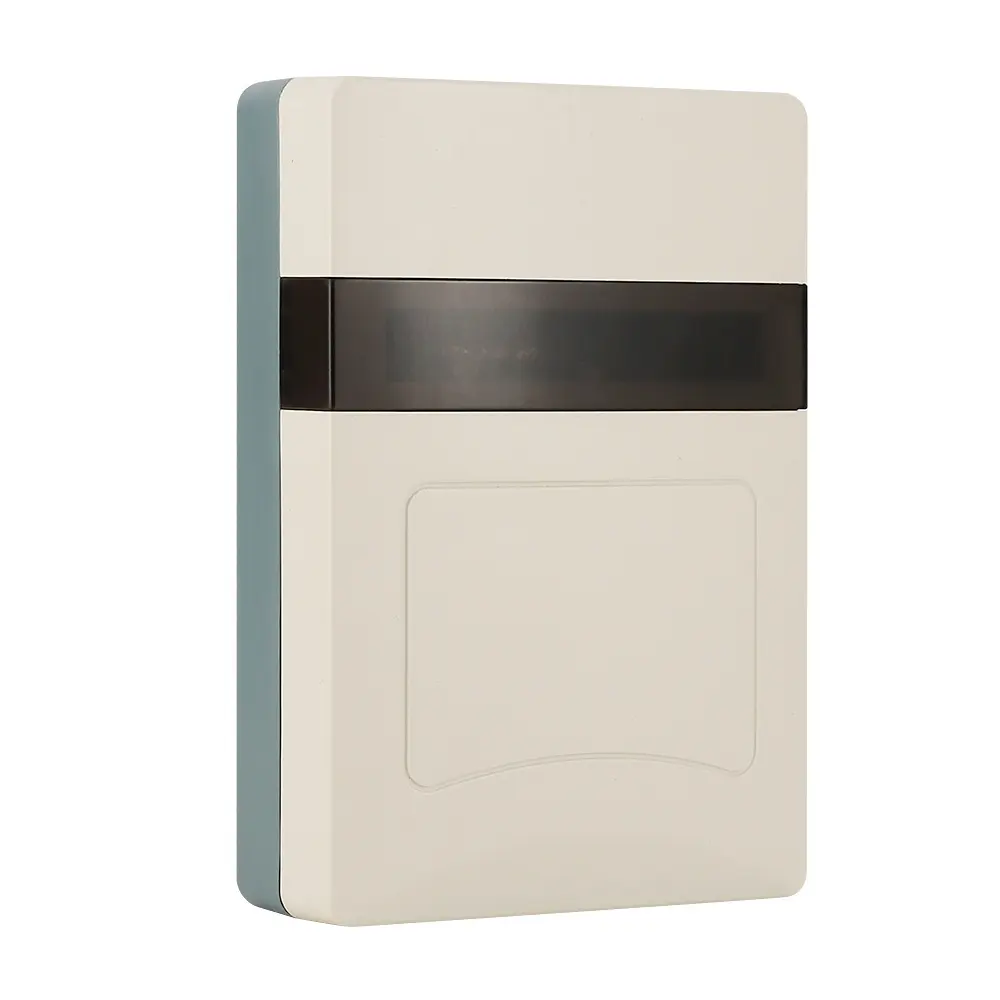

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 4

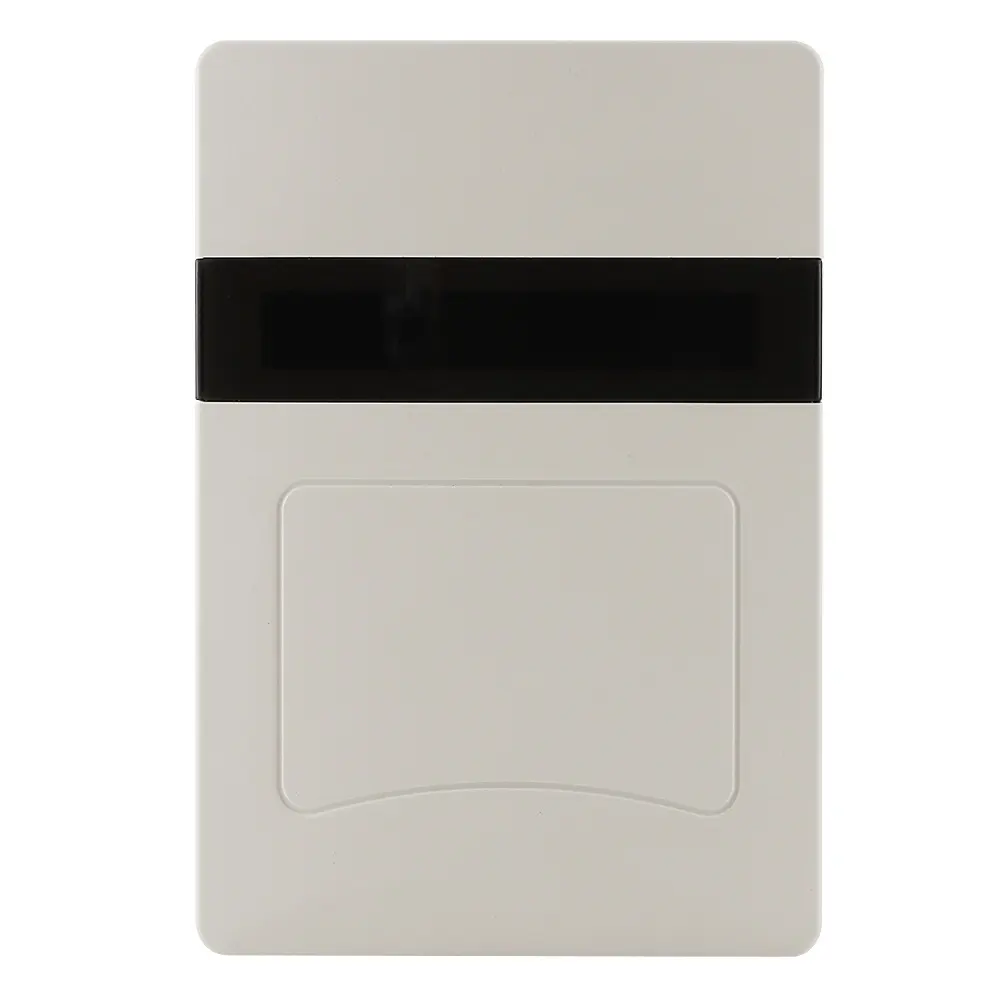

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 5

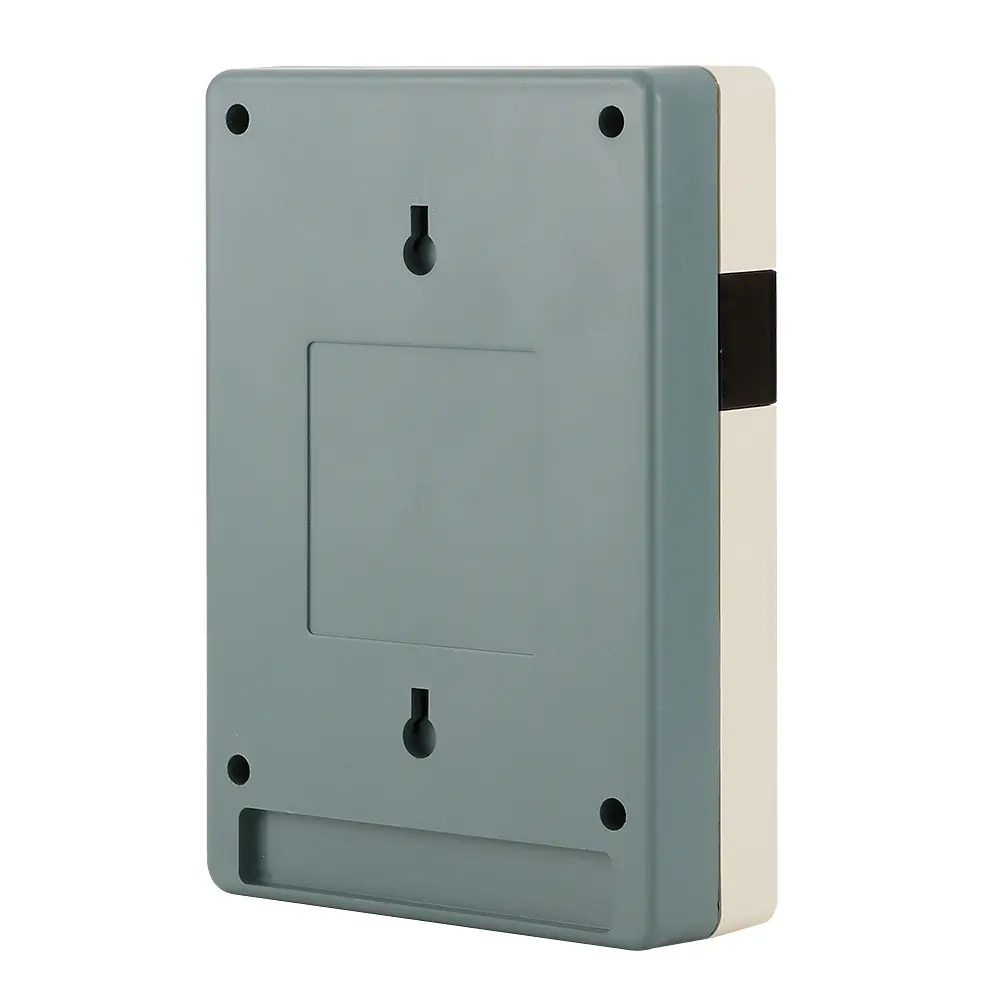

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 6

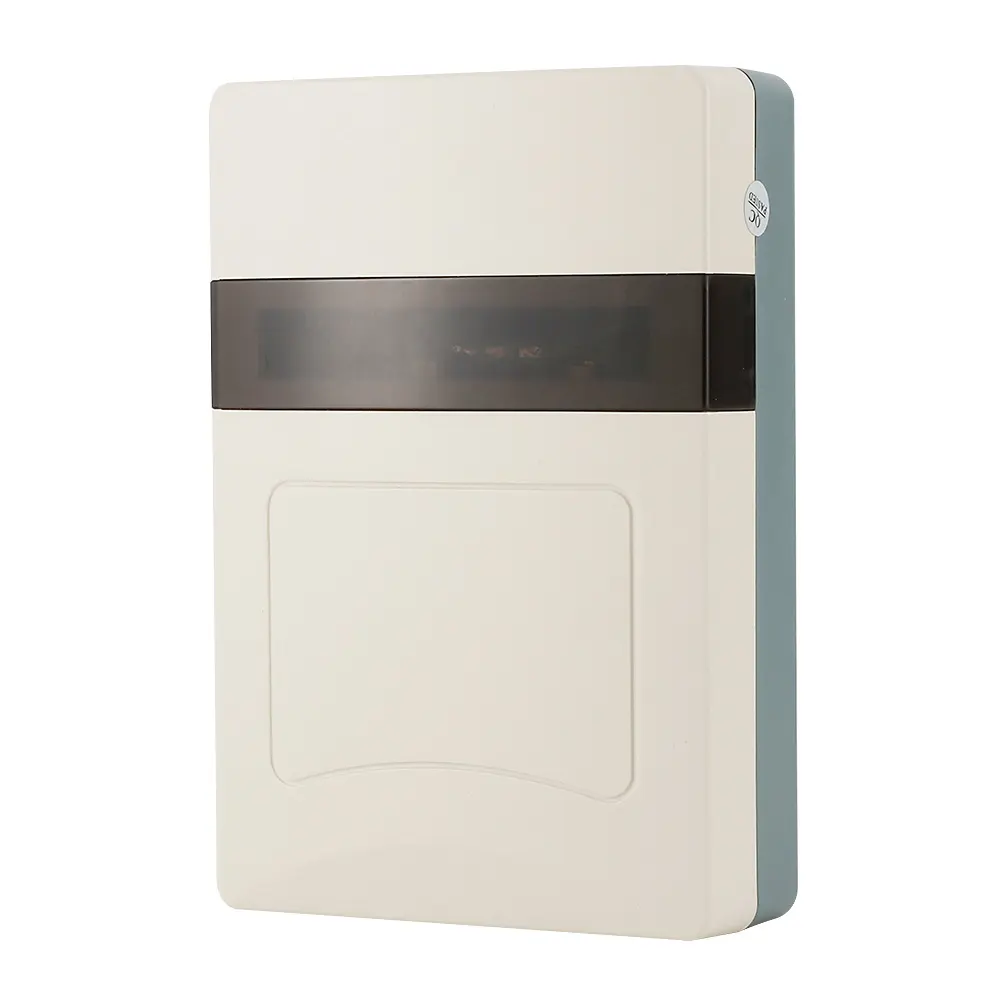

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 7
For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 1
For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 2
For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 3
For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 4
For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 5
For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 6
For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 7

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK

Model:
L6020
Certification:
FCC
FOB price:
Negotiable
Inquiry

Product details of the long range uhf rfid reader


Quick Overview

The application of the advanced technology has made LEADLANDLINK long range uhf rfid reader more perfect on appearance. The product has an exceptional and stable quality thanks to the implementation of the scientific quality management system. Our long range uhf rfid reader can be used in multiple scenarios. LEADLANDLINK is able to offer long range uhf rfid reader for customers.


Product Description

Compared with peer products, our long range uhf rfid reader has more obvious advantages and they are reflected in the following aspects.

Product feature

The desktop RFID reader has two green LED indicatiors and one red LED indicator, and an small antenna inside. Polarization is vertical or horizontal while frequency is US standard 902 to 928MHz, EU band 865 to 868MHz, fixed frequency or FHSS. The unit supports RS-232, RS485 and Wiegand26/34/42/GPIO/LAN communication. RF output is less than 30dBm and is software programmable. Available software are API and demo sample (VC and VB). A flexible and easy-to-operate SDK file is provided.

The 160x110x40mm RFID reader runs on 5VDC and 1A. It weighs 0.5kg. The product is a low-cost solution that is widely used for staff attendance, access control, and mainly for uhf rfid tag /card programming.

UHF RFID product supplier-Leadlandlink has a showroom in Shenzhen and one factory in Dongguan.

L6020 Desktop RFID Reader&writer -9
L6020 Desktop RFID Reader&writer -4

Warm reminder

● Note: All price quotes in this report are in US dollars unless otherwise specified. FOB prices were provided by the companies interviewed only as reference prices at the time of interview and may have changed.

Disclaimer: All product images are provided by the companies interviewed and are for reference purposes only. Those product images featuring products with trademarks, brand names or logos are not intended for sale. We, our affiliates, and our affiliates' respective directors, officers, employees, representatives, agents or contractors, do not accept and will not have any responsibility or liability for product images (or any part thereof) which infringe on any intellectual property or other rights of a third party.

Product display

L6020 Desktop RFID Reader&writer -8 (2)
L6020 Desktop RFID Reader&writer -8 (2)
L6020 Desktop RFID Reader&writer -7
L6020 Desktop RFID Reader&writer -7
L6020 Desktop RFID Reader&writer -6
L6020 Desktop RFID Reader&writer -6
L6020 Desktop RFID Reader&writer -5
L6020 Desktop RFID Reader&writer -5
L6020 Desktop RFID Reader&writer -2
L6020 Desktop RFID Reader&writer -2

Product parameter

Item

Parameters & Performance

Reader-Tag Protocol

ISO18000-6C / EPC Class1 Gen2

Frequency Band

USA(902-928MHz), EU(865-868MHz), CN(920-925MHz), other frequency band

Communication

RS232, USB(with converter), LAN(L6020-L)

Identify Tag Range

Reading more than 10cm, Writting more than 5cm, depended on tag

Software Support

Provide Windows API, Demo sample software(With source Code)

Power Supply

DC 5V / 1A power supply

Dimension

160x110x40mm

Net Weight

0.5 Kg

Storage Temp

-30 ~ +80 degree celsius

Operation Temp

-20 ~ +75 degree celsius

IP Class

IP54

Work Performance

High speed micro-processor controlled, running steadily

Upgrade

Firmware can be upgraded easily by RS-232/USB/LAN

Product Aspect

Item

Photo & Description

Product Aspect

Photo (L6020)

Photo (L6020-L)



For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 15

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 16



Accessories

Power Adaptor

CD



For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 17

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 18



RS-232 Cable (for L6020 only)

RS-232 To USB Converter (Optional, not provided by default)

LAN Cable (RJ45) (For L6020-L Only)

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 19

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 20

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 21

Panel LED Indication


Installation & Connection

The reader must be installed and connected correctly before operating.

L6020: Connect the card programmer to computer by RS-232 cable or USB cable(with RS232-to-USB converter).

Note: For USB model, a USB-RS232 driver program needs to be installed.  Please install the driver that we provided.  After that, the USB port is simmulated to a common serial port number(eg.  COM4).  Please set this serial port property to 115200bps, 8, N, 1.  Then you may operate the card programmer just like the RS-232 model.

For some PC or OS, after installing the driver, user may need to restart the computer so as to validate the driver.  Sometime it may be a good solution to plug out USB connector and plug in again in case of not well connection.

L6020-L: Connect the card programmer to computer or HUB by LAN cable(RJ45).

Note: The default reader IP Address is 192.168.0.178, Port is 4001.

User should set the PC IP address to the same section as reader (eg.  PC IP address is 192.168.0.100, Mask is 255.255.255.0, Gateway is 192.168.0.1).

L6020 Desktop RFID Reader&writer -3
L6020 Desktop RFID Reader&writer -10

After power on by plugging 5V DC power supply, the card programmer will sound a BEEP, together with Red LED lighting.  There are three LED lights on reader panel to indicate the different operating status:

POWER (Red):

Power indication LED.

COMM (Green):

Communication indication LED.

STATUS (Green):

Read/Write status indication LED.

A SDK(Software Development Kit) package is provided together with the card programmer.  The SDK includes Demo software with source code, API functions set, and serial port Communication Protocol.  When installation and connection succeed, user can use the provided Demo software to operate on the card programmer and tags.

Note:

For how to operate card programmer please see document "L6020 Desktop RFID Card Programmer Demo User's Guide.pdf".

For how to use API functions set by Demo please see document "L6020 Desktop RFID Card Programmer API User's Guide.pdf".

For serial port communication protocol please see document "L6020 Desktop RFID Card Programmer Communication Protocol User's Guide.pdf".

Attention before operating

One 5V power supply(1000mA or above is suggested) must be required for this reader, too high voltage will damage the reader! A good quality power supply is required to guarantee the good reading/writting performance, please use our provided power adaptor as far as possible.
When reading/writing a card, please put card above the card programmer, with a direction according to the frame on the top of card programmer. It is highly suggested that user hold a tag to read it continually first, then write it. This way will get good writting result.
Reader is designed for close range reading/writing, in order to read/write card one by one. With correct operating way and good position, the writting success rate may reach 100%.

FAQ

The frequent asked questions and the resolutions are listed below:

Failure

Possible Reason

Solution

Reader can not be connected

Communication cable or port poor contact or not connected well

Check and connect communcation cable well

Driver not installed or error

Remove and install drive software

Card unreadable or unwrittable

Power does not work, or poor contact for power plug

Check the power supply, use the correct power

Tag is too far from reader or improper postion

Move tag close to reader in good position

Tag has been damaged or improperly operated

Change to a new tag

Applications

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 28
1
Vehicle management, garage management, parking lot, highway
For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 29
2
Logistics management, super market, warehouse, manufacturing and dock/container
For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 30
3
Staff management, HR management, auto home and miner management

Application


Examples

Description

Vehicle Management

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 31

Parking lot

Charge automation, pass in and out management

Highway Charge

Charge automation for highway, bridge and tunnel

Dock/Container

Container management in road, railway and dock

Vehicle Monitor

Vehicle monitor in traffic management

Logistics Management

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 32

Warehouse

Warehouse, Super market, Mailing, Package management

Manufacture

Monitor the products in production-line

Custom

Goods management for custom clearance

Anti-fake

Anti-fake for products

Staff Management

For Hospital Long Range Uhf Rfid Reader L6020 by LEADLANDLINK 33

Access Control

Access control system for staff pass in and out

Work Attendance

Check on work attendance, HR management

Miner

Miner management, insurance

EduToHome

Students management between school and home

Application

This is on site of application~Leadlandlink Uhf rfid reader applied in one University of Pakistan in 2018 year, for staff management.
