For Apartment Uhf Rfid Reader Module Negotiable by LEADLANDLINK

Model:
L6040
Certification:
CE
FOB price:
Negotiable
Inquiry

Company Advantages

· LEADLANDLINK uhf rfid reader module is crafted by skillful and experienced workers, with exquisite appearance.

· There is no negative feedback about the product quality and usability.

· The product has different specifications and is highly demanded by customers due to its high economic return.

Product feature

The UHF RFID reader Module can connect with antenna, and you may choose our antenna with blue or red LED indicators, 12dBi gain or 8dBi gain.  Polarization is vertical or horizontal while frequency is US standard 902 to 928MHz, EU band 865 to 868MHz, fixed frequency or FHSS.  The unit supports RS-232, RS485 and Wiegand26/34/42/GPIO/LAN communication.  RF output is less than 30dBm and is software programmable.  Available software are API and demo sample (VC and VB).  A flexible and easy-to-operate SDK file is provided.

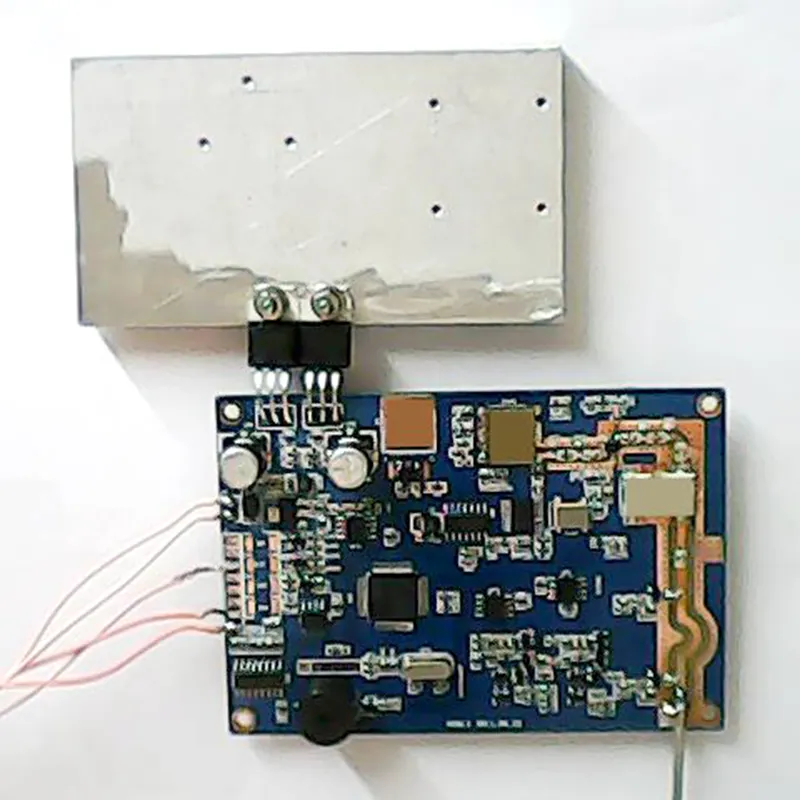

The 120x90x10mm RFID reader PCBA runs on 12VDC and 2A.  It weighs 0.25kg.  The product is a low-cost solution that is widely used for parking lots, access control, sport timing and other intelligent identification systems.

UHF RFID product supplier-Leadlandlink has a showroom in Shenzhen and one factory in Dongguan.

PCB12 with  radiator
PCB12 with  radiator (2)

Warm reminder

● Note: All price quotes in this report are in US dollars unless otherwise specified. FOB prices were provided by the companies interviewed only as reference prices at the time of interview and may have changed.

Disclaimer: All product images are provided by the companies interviewed and are for reference purposes only. Those product images featuring products with trademarks, brand names or logos are not intended for sale. We, our affiliates, and our affiliates' respective directors, officers, employees, representatives, agents or contractors, do not accept and will not have any responsibility or liability for product images (or any part thereof) which infringe on any intellectual property or other rights of a third party.

Product display

L6020 Desktop RFID Reader&writer -8 (2)
L6020 Desktop RFID Reader&writer -8 (2)
L6020 Desktop RFID Reader&writer -7
L6020 Desktop RFID Reader&writer -7
L6020 Desktop RFID Reader&writer -6
L6020 Desktop RFID Reader&writer -6
L6020 Desktop RFID Reader&writer -5
L6020 Desktop RFID Reader&writer -5
L6020 Desktop RFID Reader&writer -2
L6020 Desktop RFID Reader&writer -2

Product parameter

Item

Parameters & Performance

Reader-Tag Protocol

ISO18000-6B, EPC Class1 Gen2

Antenna Port

SMA Male or Female

Frequency Band

US(902-928MHz), EU(865-868MHz), CN(920-925MHz), other frequency band.

Frequency Mode

Fixed frequency mode / FHSS frequency mode

Communication

RS232/USB, RS485/Wiegand/Trigger

Detecting Range

Up to 15meters, depend on environment and tag

RF Output

Less than 32dBm, Software Programmable

Software Support

Provide Communication Protocol, Windows API & Demo, VC/VB/C# source/sample code

Power Supply

DC 12V supply, less than 2A

Dimension

120x90x10 mm (not including antennas and fittings)

Weight

0.25Kg

Storage Temp

-30 ~ +85 degree celsius

Operation Temp

-20 ~ +80 degree celsius

Anti-thunder Protection

Shell direct to the ground, communication 1.5KV surge endurance

Work Performance

High speed micro-processor controlled, running steadily

Work Mode

Support Master-Slave mode, Trigger/Automatic mode

Fast Identify

Tags with more than 160Km/h speed can be identified

Upgrade

Firmware can be upgraded easily by RS232/USB/LAN

Applications

For Apartment Uhf Rfid Reader Module Negotiable by LEADLANDLINK 11
1
Vehicle management, garage management, parking lot, highway
For Apartment Uhf Rfid Reader Module Negotiable by LEADLANDLINK 12
2
Logistics management, super market, warehouse, manufacturing and dock/container
LH60-9
3
Staff management, HR management, auto home and miner management

Application


Examples

Description

Vehicle Management

For Apartment Uhf Rfid Reader Module Negotiable by LEADLANDLINK 14

Parking lot

Charge automation, pass in and out management

Highway Charge

Charge automation for highway, bridge and tunnel

Dock/Container

Container management in road, railway and dock

Vehicle Monitor

Vehicle monitor in traffic management

Logistics Management

For Apartment Uhf Rfid Reader Module Negotiable by LEADLANDLINK 15

Warehouse

Warehouse, Super market, Mailing, Package management

Manufacture

Monitor the products in production-line

Custom

Goods management for custom clearance

Anti-fake

Anti-fake for products

Staff Management

For Apartment Uhf Rfid Reader Module Negotiable by LEADLANDLINK 16

Access Control

Access control system for staff pass in and out

Work Attendance

Check on work attendance, HR management

Miner

Miner management, insurance

EduToHome

Students management between school and home

图片2 (4)
图片2 (4)
图片3 (4)
图片3 (4)
图片4 (3)
图片4 (3)
图片5 (2)
图片5 (2)


Company Features

· SHENZHEN LEADLANDLINK RFID TECHNOLOGY CO., LTD. has years of expertise in the design and production of uhf rfid reader module and has been remarked as on the most powerful manufacturer.

· Our factory is strategically located. It allows us to acquire a variety of technical and support talents that help us in our mission to provide excellent manufacturing services. Our plant has the latest technology that can get customer projects completed and looking amazing in just a few weeks. Our products are sold all over the world. This global footprint combines local expertise and an international network to bring our products to a more diverse professional uhf rfid reader module market.

· Long-term and stable business cooperations and high customer satisfaction are what we always pursue after. This objective makes us always focus on offering innovative products and different kinds of product solutions for clients.


Product Details

The following is the section for presenting uhf rfid reader module's details.
