Uhf Integrated Reader for Business Negotiablemanufacturing
Product details of the uhf integrated reader
Product Information
Innovation-oriented design: LEADLANDLINK uhf integrated reader is innovatively designed by a team of professional designers. They are full of innovative ideas and are willing to embrace the changing market demands. SHENZHEN LEADLANDLINK RFID TECHNOLOGY CO., LTD. takes the performance of uhf integrated reader seriously. One of the focusing point in LEADLANDLINK is to check every detail of the uhf integrated reader.
Product feature

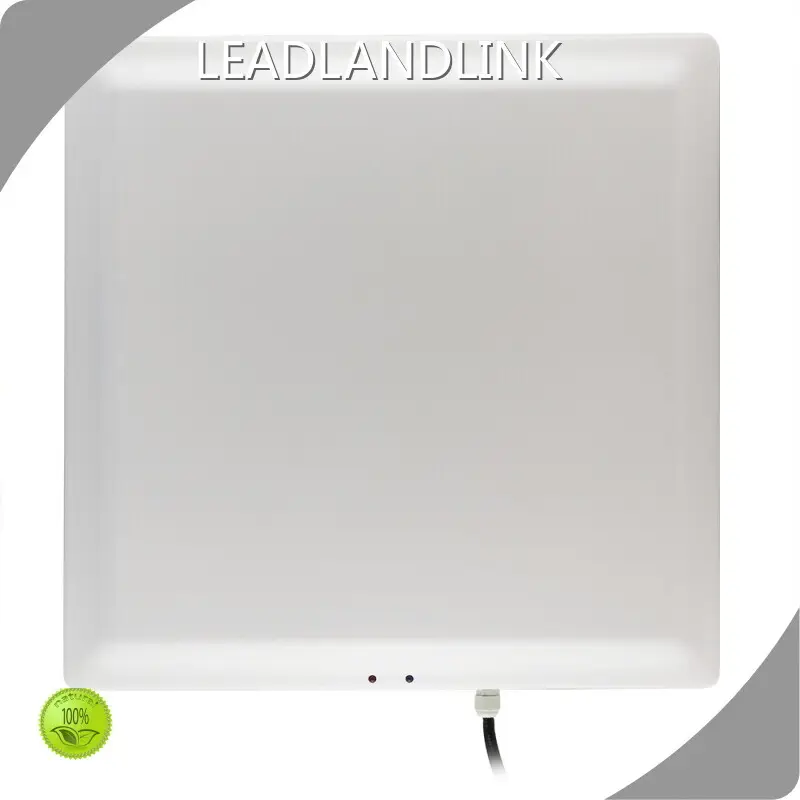

The RFID reader integrates blue or red LED indicators, and an antenna with 12dBi gain. Polarization is vertical or horizontal while frequency is US standard 902 to 928MHz, EU band 865 to 868MHz, fixed frequency or FHSS. The unit supports RS-232, RS485 and Wiegand26/34/42/GPIO/LAN communication. RF output is less than 30dBm and is software programmable. Available software are API and demo sample (VC and VB). A flexible and easy-to-operate SDK file is provided.
The 370x370x60mm RFID reader runs on 12VDC and 2A. It weighs 3.5kg. Installation pole diameter is 60x70mm and mechanical tilt can reach 15 degrees. The product is a low-cost solution that is widely used for parking lots, access control, sport timing and other intelligent identification systems.
UHF RFID product supplier-Leadlandlink has a showroom in Shenzhen and one factory in Dongguan.
Warm reminder
● Note: All price quotes in this report are in US dollars unless otherwise specified. FOB prices were provided by the companies interviewed only as reference prices at the time of interview and may have changed.
● Disclaimer: All product images are provided by the companies interviewed and are for reference purposes only. Those product images featuring products with trademarks, brand names or logos are not intended for sale. We, our affiliates, and our affiliates' respective directors, officers, employees, representatives, agents or contractors, do not accept and will not have any responsibility or liability for product images (or any part thereof) which infringe on any intellectual property or other rights of a third party.
Product display
Product parameter
|
Item |
Parameters & Performance |
Item |
Parameters & Performance |
|
Reader-Tag Protocol |
ISO18000-6B, EPC Class1 Gen2 |
Weight |
3.5Kg |
|
Antenna Port |
Integrated antenna, Horizontal Polarization |
Pole Diameter |
40-50mm |
|
Frequency Band |
US(902-928MHz), EU(865-868MHz), CN(920-925MHz), other frequency band. |
Storage Temp |
-30 ~ +85 degree celsius |
|
Frequency Mode |
Fixed frequency mode / FHSS frequency mode |
Operation Temp |
-20 ~ +80 degree celsius |
|
Communication |
RS232/USB/LAN, RS485/Wiegand/GPIO |
Anti-thunder Protection |
Shell direct to the ground, communication 1.5KV surge endurance |
|
Detecting Range |
Up to 30meters, depend on environment and tag |
Work Performance |
High speed micro-processor controlled, running steadily |
|
RF Output |
Less than 32dBm, Software Programmable |
Work Mode |
Support Master-Slave mode, Trigger/Automatic mode |
|
Software Support |
Provide Communication Protocol, Windows API & Demo, VC/VB/C# source/sample code |
Fast Identify |
Tags with more than 160Km/h speed can be identified |
|
Power Supply |
DC 12V supply, less than 2A |
Upgrade |
Firmware can be upgraded easily by RS232/USB/LAN |
|
Dimension |
370x370x60 mm (not including fitting) |
|
|
Applications
|
Application |
Photo |
Examples |
Description |
|
Vehicle Management |
|
Parking lot |
Charge automation, pass in and out management |
|
Highway Charge |
Charge automation for highway, bridge and tunnel |
||
|
Dock/Container |
Container management in road, railway and dock |
||
|
Vehicle Monitor |
Vehicle monitor in traffic management |
||
|
Logistics Management |
|
Warehouse |
Warehouse, Super market, Mailing, Package management |
|
Manufacture |
Monitor the products in production-line |
||
|
Custom |
Goods management for custom clearance |
||
|
Anti-fake |
Anti-fake for products |
||
|
Staff Management |
|
Access Control |
Access control system for staff pass in and out |
|
Work Attendance |
Check on work attendance, HR management |
||
|
Miner |
Miner management, insurance |
||
|
EduToHome |
Students management between school and home |
This is on site of application~Leadlandlink Uhf rfid reader applied in one lane of Airport in Africa, it has been successfully running for over two years.
