Product details of the uhf reader
Quick Detail
uhf reader is well sold in the state, and exported to many overseas markets. It attracts users' attention with its easy-to-use performance. The uhf reader developed by LEADLANDLINK is widely used in various fields. It is highly competitive in the overseas market and enjoys high popularity and reputation.
Product Information
In order to know uhf reader better, LEADLANDLINK will show you the specific details in the following section.
Product feature

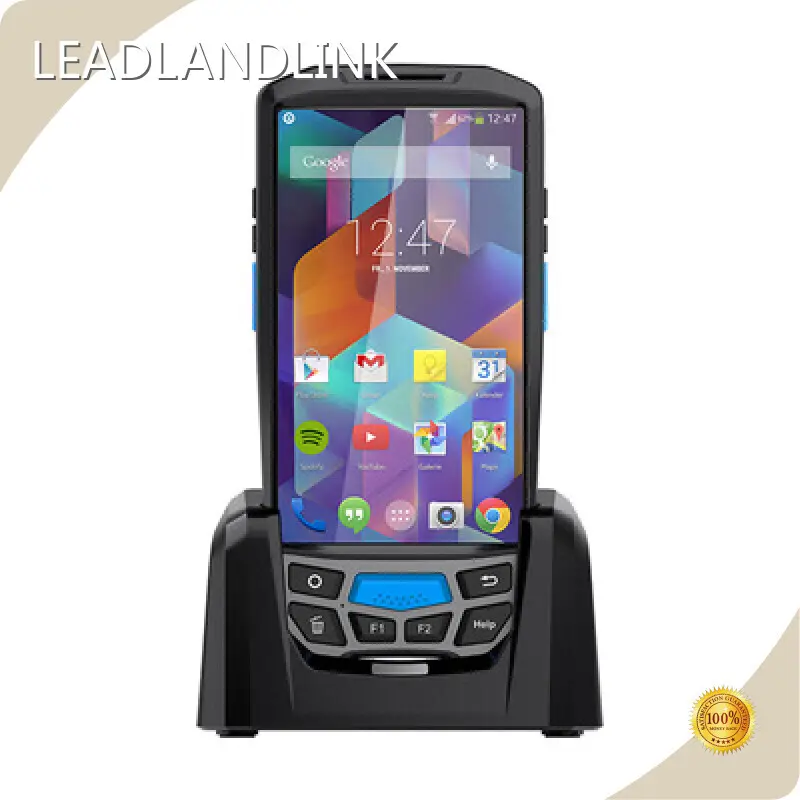

The Handheld RFID reader integrates an antenna inside, and it can also read NFC card, 1D scanning, 2D scanning...
The 178x78x24mm Handheld RFID reader runs by chargeable polymer battery. It weighs 300g. The product is a low-cost solution that is widely used for logistic, warehouse, library, and other intelligent identification systems.
UHF RFID product supplier-Leadlandlink has a showroom in Shenzhen and one factory in Dongguan.
Warm reminder
● Note: All price quotes in this report are in US dollars unless otherwise specified. FOB prices were provided by the companies interviewed only as reference prices at the time of interview and may have changed.
● Disclaimer: All product images are provided by the companies interviewed and are for reference purposes only. Those product images featuring products with trademarks, brand names or logos are not intended for sale. We, our affiliates, and our affiliates' respective directors, officers, employees, representatives, agents or contractors, do not accept and will not have any responsibility or liability for product images (or any part thereof) which infringe on any intellectual property or other rights of a third party.
LH90
● MULTI-FUNCTION DATA TERMINAL
● 5.0-inch HD screen · High speed Quad - core
● Android 8.1 system ·4G full Netcom
Product parameter
Product parameters |
|
Performance |
|
Quad core |
|
CPU |
Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor |
RAM+ROM |
2GB+16GB Supports up to 3GB+32GB |
Expand memory |
Micro SD(TF) Supports up to 128GB |
System |
Android 8.1 |
Octa core |
|
CPU |
Cortex-A53 Octa-core 64-bit 2.0GHz high-performance processor |
RAM+ROM |
2GB+16GB Supports up to 3GB+32GB / 4GB+64GB |
Expand memory |
Micro SD(TF) Supports up to 128GB |
System |
Android 9.0 |
Data communication |
|
WLAN |
Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol |
WWAN |
2G:GSM(850/900/1800/1900MHz) |
3G:WCDMA(850/900/1900/2100MHz) |
|
4G:FDD:B1/B3/B4/B7/B8/B12/B20 |
|
TDD:B38/B39/B40/B41 |
|
Bluetooth |
Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters |
GPS |
Support GPS, Galileo, Glonass, Beidou |
Physical parameter |
|
Dimensions |
178mm×78mm×24mm |
Weight |
<500g |
Display |
5.0 inch IPS color display with resolution 720*1280 |
TP |
Corning Gorilla glass, supports multi-touch Supported gloves and wet hands |
Battery capacity |
Rechargeable polymer battery (3.7V 4800mAh) removable |
Standby time >350 hours |
|
Working time > 12 hours |
|
Charging time <4H, using standard power adapter and data cable |
|
Expansion Card slot |
PSAM x 2, Micro SIM card x 1 , TF card × 1、 POGO Pin x 1 |
Communication interface |
Type-C USB x 1, OTG |
Audio |
Speaker (mono), Microphone, Earpiece |
Keypad |
13 soft silicone buttons |
Sensor |
Gravity sensor, Vibration motor |
Language/input method |
|
Input |
English, Pinyin, Five strokes, Handwriting input, Support soft keypad |
Language |
Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian, etc. |
Data collection |
|
Barcode scanning (Optional) |
|
1D Linear scanner |
Mindeo SE966 Honeywell N4313 |
1D Symbologies |
Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaber,Interleaved 2 of 5,China post 25,ISBN/ISSN, Code93,UCC/EAN-128, GS1 Databar,HIBC, etc. |
2D Imager scanner |
Newland E483 Honeywell N3603 Honeywell N6703 |
2D Symbologies |
PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code, etc. |
Camera (Optional) |
|
Rear camera |
8MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting |
Extended function |
|
Infrared (Optional) |
|
Wavelength |
940nm |
Frequency |
38kHz |
Distance |
>4m |
Protocol |
DLT_645-2007,DLT_645-1997 |
Fingerprint recognition (Optional) |
|
Frequency |
Configure TCS semiconductor sensor with live identification technology |
Collection area |
11.3×12.4mm |
Resolution |
508 dpi, 8-bit grayscale |
Extraction format |
ISO 19794, WSQ, ANSI 378, JPEG2000 |
Secure encryption |
AES, DES key encryption for host communication channel |
ID card identification (Optional) |
|
Radio frequency technology |
Comply with ISO/IEC 14443type B standard, and "GA 450-2003 desktop resident ID card reader general technical requirements", "1GA450-2003 desktop resident ID card reader general technical requirements first revised but (draft)" |
Security module |
ID verification system dedicated module |
Distance |
0~5cm |
Reading use |
<1.55 |
Frequency |
13.5MHz±7kHz |
NFC (optional) |
|
Frequency |
13.56MHz |
Protocol |
Support ISO14443A/B, 15693 agreement |
Distance |
2cm-5cm |
UHF (optional) |
|
Frequency |
840-960MHz |
Protocol |
EPCglobal UHF Class1 Gen2 / ISO 18000-6C |
Distance |
>1.5m |
125K (optional) |
|
Frequency |
125K/134.2K;ISO11784/ISO11785/FDX-Bfrequency |
User environment |
|
Operating temperature |
-20℃ - 55℃ |
Storage temperature |
-40℃ - 70℃ |
Environment humidity |
5%RH--95%RH(no condensation) |
Drop specification |
6 sides Supports 1.5 meters drops and 30 times to the concrete within the operating temperature |
Rolling test |
500×0.5m rolling for 6 sides |
Protection level |
IP66 |
Accessories |
|
Standard |
Adapter, Data cable, Protective film, Instruction manual |
Applications
Application |
Photo |
Examples |
Description |
Vehicle Management |
|
Parking lot |
Charge automation, pass in and out management |
Highway Charge |
Charge automation for highway, bridge and tunnel |
||
Dock/Container |
Container management in road, railway and dock |
||
Vehicle Monitor |
Vehicle monitor in traffic management |
||
Logistics Management |
|
Warehouse |
Warehouse, Super market, Mailing, Package management |
Manufacture |
Monitor the products in production-line |
||
Custom |
Goods management for custom clearance |
||
Anti-fake |
Anti-fake for products |
||
Staff Management |
|
Access Control |
Access control system for staff pass in and out |
Work Attendance |
Check on work attendance, HR management |
||
Miner |
Miner management, insurance |
||
EduToHome |
Students management between school and home |
Company Introduction
We focus on making uhf reader. Our ISO certified factory is equipped with state-of-the-art equipment and highly qualified engineers. Almost every aspect of the factory operation is covered under an industrial quality system. SHENZHEN LEADLANDLINK RFID TECHNOLOGY CO., LTD. continuously improves product quality and service quality in the process of accumulating experience.
Customers who need our products are welcomed to contact us for consultation.
