Bepoke Uhf Rfid Antenna for Different Industries

Model:
LH60
Certification:
CE
FOB price:
Negotiable
Inquiry
Send your inquiry

Product feature

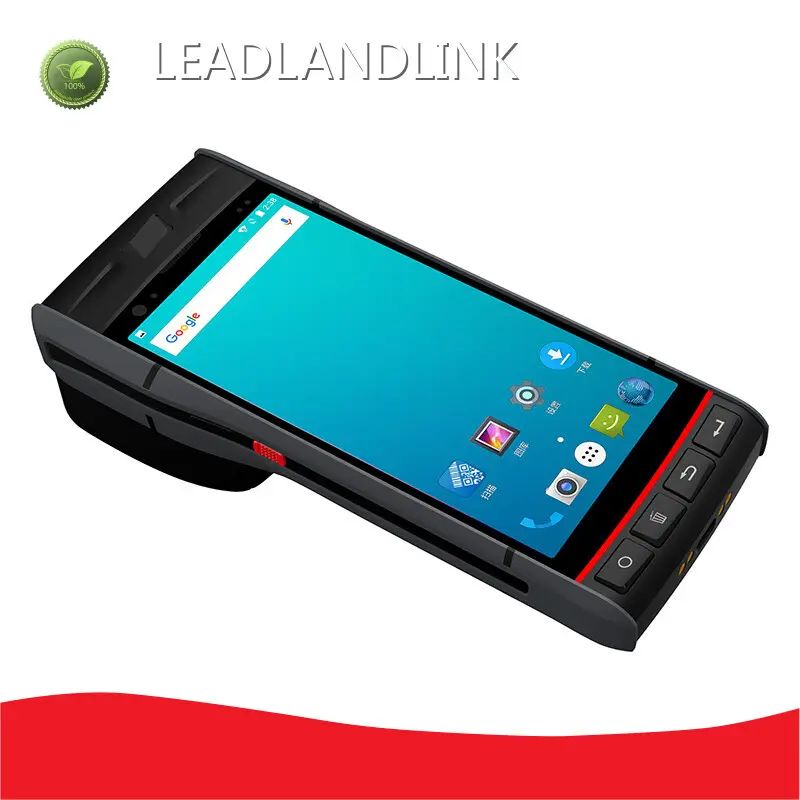

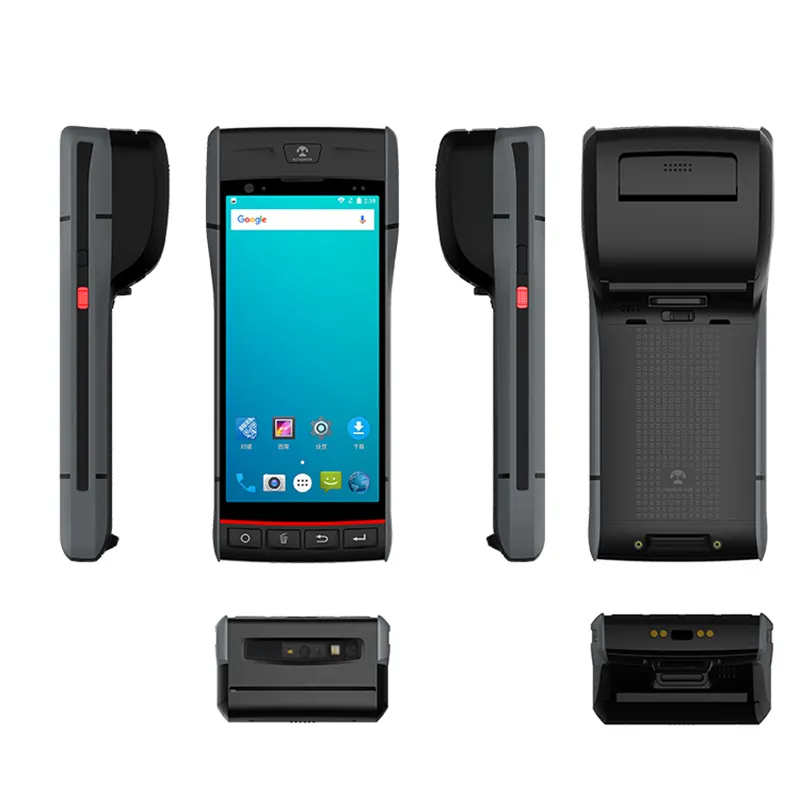

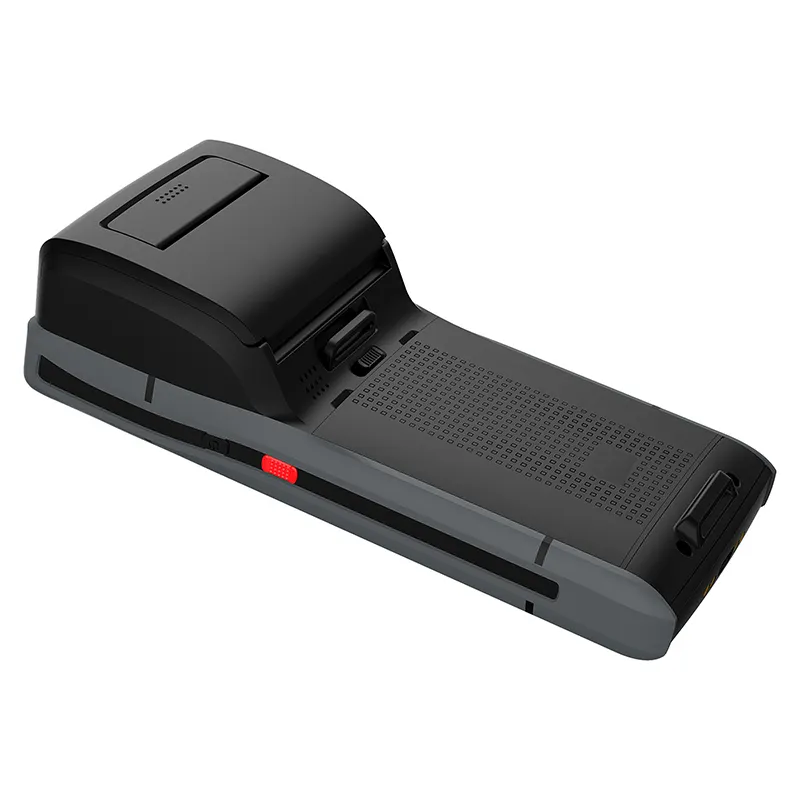

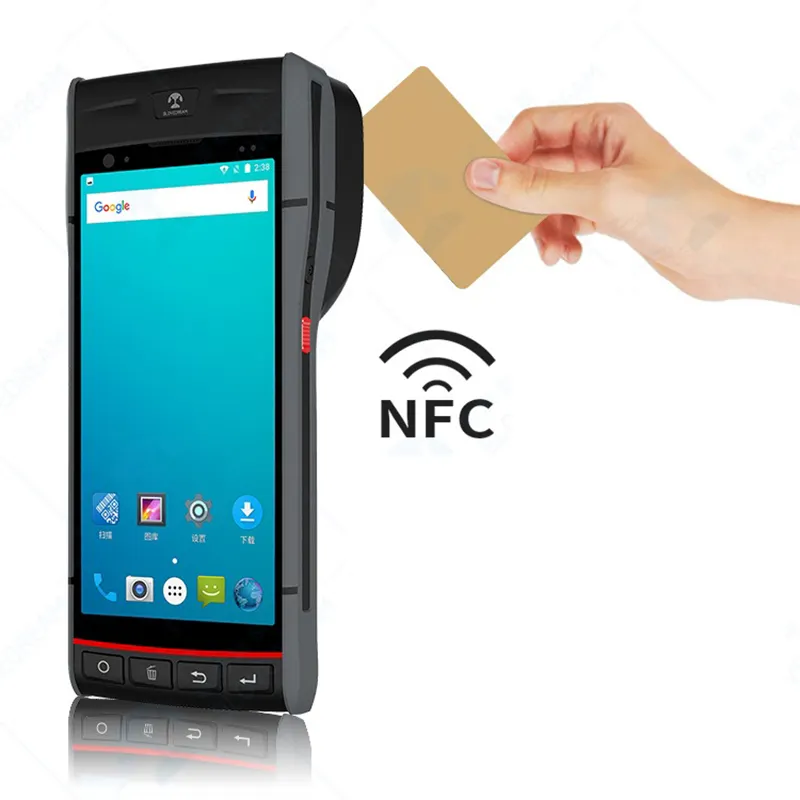

The Handheld RFID reader integrates an antenna inside, and it can also read NFC card, 1D scanning, 2D scanning...

The 178x83x17mm Handheld RFID reader runs by chargeable lithium ion battery.   It weighs 300g.   The product is a low-cost solution that is widely used for logistic, warehouse, library, and other intelligent identification systems.

UHF RFID product supplier-Leadlandlink has a showroom in Shenzhen and one factory in Dongguan.

LH60-8
LH60-1 english

Warm reminder

● Note: All price quotes in this report are in US dollars unless otherwise specified. FOB prices were provided by the companies interviewed only as reference prices at the time of interview and may have changed.

Disclaimer: All product images are provided by the companies interviewed and are for reference purposes only. Those product images featuring products with trademarks, brand names or logos are not intended for sale. We, our affiliates, and our affiliates' respective directors, officers, employees, representatives, agents or contractors, do not accept and will not have any responsibility or liability for product images (or any part thereof) which infringe on any intellectual property or other rights of a third party.

Product display

L6020 Desktop RFID Reader&writer -8 (2)
L6020 Desktop RFID Reader&writer -8 (2)
L6020 Desktop RFID Reader&writer -7
L6020 Desktop RFID Reader&writer -7
L6020 Desktop RFID Reader&writer -6
L6020 Desktop RFID Reader&writer -6
L6020 Desktop RFID Reader&writer -5
L6020 Desktop RFID Reader&writer -5
L6020 Desktop RFID Reader&writer -2
L6020 Desktop RFID Reader&writer -2

LH60

● MULTI-FUNCTION DATA TERMINAL

5.7-inch HD screen · High speed Quad - core

Android 12 system ·4G full Netcom

LH60-7 (2)
LH60-7 (2)
LH60-2 (2)
LH60-2 (2)
图片1 (6)

Product parameter

Type

Detail

Standard configuration

Optional



Dimensions

178*83*17mm

NA

Weight

300g

NA

Color

Black (bottom shell black, front shell black)



LCD

Display size

5.0#(Select 5.72#full screen)

NA

Display resolution

1280*720/Full screen resolution: 1440*720

NA

TP

Touch Panel

Multi-touch panel, Corning grade 3 glass toughened screen

NA

Camera

Front camera

5.0MP(optional)

Optional

Rear camera

13MP Autofocus with flash

NA

Speaker

Built-in

Built-in 8Ω/0.8W waterproof horn x 1

NA

Microphones

Built-in

Sensitivity: -42db, output impedance 2.2kΩ

NA

Battery

Type

Removable polymer lithium ion battery

NA

Capacity

3.7V/4300mAh

NA

Battery life

About 8 hours (standby time > 300h)

NA

System Hardware Configuration

Type

Detail

Description

Optional

CPU

Type

MTK 6762-Octa-core

NA

Speed

2.0GHz

NA

RAM

Memory

3GB (2G or 4G optional)

NA

ROM

Storage

32GB (16G or 64G optional)

NA

Operating System

Operating System Version

Android 12



Network connection

Type

Detail

Description

Optional

WIFI

WIFI module

WIFI 802.11 b/g/n/a/ac  frequency 2.4G+5G dual band WIFI,

NA

Bluetooth

Built-in

BT5.0(BLE)

NA

2G/3G/4G

Built-in

CMCC 4M: LTE 1,B3,B5,B7,B8,B20,B38,B39,B40,B41 WCDMA 1/2/5/8GSM 2/3/5/8

NA

GPS

Built-in

Support

NA

Data Collection

Type

Detail

Description

Optional

Fingerprint

Optional

Fingerprint module: capacitive USB press module

Optional

Image size:256*360pi xei;FBI PIV FAP10 certification;

Image resolution:508dpi

International standard:

Authoritative certification:

Acquisition speed:single frame image acquisition time ≤0.25s

QR code

Optional

Honeywell 6603&zebra se4710&CM60

Optional

Optical resolution: 5mil

Scanning speed: 50 times/s

Support code type: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse

RFID function

LF

Support 125K and 134.2K;effective recognition distance 3-5cm

Optional

HF

13.56Mhz, support 14443A/B;15693 agreement, effective recognition distance 3-5cm

UHF

CHN frequency:920-925Mhz

US frequency:902-928Mhz

EU frequency:865-868Mhz

Protocol standard:EPC C1 GEN2/ISO18000-6C

Antenna parameter:ceramic antenna(1dbi)

Card reading distance:according to different labels, the effective distance is 1-6m

Electric infrared meter reading function

Working current

50mA(meter reading)/<2mA(standby)

Optional

Meter reading distance

>3.5m;angle 35°

Modulation frequency

KHz(crystal oscillator accuracy)

Baud rate

1800 b/S(DLT645 is 1200 b/S)

Infrared wavelength

940nm

Communication specification

Comply with DLT 645-2007(DLT 645-1997)communication technical specifications

Biometric

Identification of second generation ID card of Chinese Residents

Support network version decryption of ID card

Optional

Fingerprint acquisition

Support capacitive finger press acquisition

Optional

Face recognition

Embed face recognition algorithm

Optional

Reliability

Type

Detail

Description



Product reliability

Drop height

150cm, power on status



Operating Temp.

‘-20 °C to 50 °C



Storage Temp.

’-20 °C to 60 °C



Humidity

Humidity: 95% Non-Condensing



Applications

Bepoke Uhf Rfid Antenna for Different Industries 15
1
Vehicle management, garage management, parking lot, highway
Bepoke Uhf Rfid Antenna for Different Industries 16
2
Logistics management, super market, warehouse, manufacturing and dock/container
LH60-9
3
Staff management, HR management, auto home and miner management

Application


Examples

Description

Vehicle Management

Bepoke Uhf Rfid Antenna for Different Industries 18

Parking lot

Charge automation, pass in and out management

Highway Charge

Charge automation for highway, bridge and tunnel

Dock/Container

Container management in road, railway and dock

Vehicle Monitor

Vehicle monitor in traffic management

Logistics Management

Bepoke Uhf Rfid Antenna for Different Industries 19

Warehouse

Warehouse, Super market, Mailing, Package management

Manufacture

Monitor the products in production-line

Custom

Goods management for custom clearance

Anti-fake

Anti-fake for products

Staff Management

Bepoke Uhf Rfid Antenna for Different Industries 20

Access Control

Access control system for staff pass in and out

Work Attendance

Check on work attendance, HR management

Miner

Miner management, insurance

EduToHome

Students management between school and home

图片2 (4)
图片2 (4)
图片3 (4)
图片3 (4)
图片4 (3)
图片4 (3)
图片5 (2)
图片5 (2)


Company Advantages

· One of LEADLANDLINK’s greatest strengths and benefits offered to our clients is the ability to develop unique design.

· Modified by several times, uhf rfid antenna can be applied into many different places.

· Our professional testing people will help customers conduct testing for the quality of uhf rfid antenna.


Company Features

· SHENZHEN LEADLANDLINK RFID TECHNOLOGY CO., LTD. is one of the largest enterprise for manufacturing and exporting uhf rfid antenna.

· We possess a dedicated design team. They can constantly improve the design value of our products including uhf rfid antenna by being involved in every stage of the design cycle.

· Integrity is our business philosophy. We work with transparent timelines and maintain a deeply collaborative process, ensuring we meet every client's specific needs.


Application of the Product

The uhf rfid antenna developed by LEADLANDLINK is widely used in various fields.

LEADLANDLINK insists on providing customers with RFID UHF,RFID Reader,,UHF Reader,UHF RFID Scanner,Access control,RFID Antenna,RFID TAG,RFID Ca of high quality and a one-stop solution that's comprehensive and efficient.
